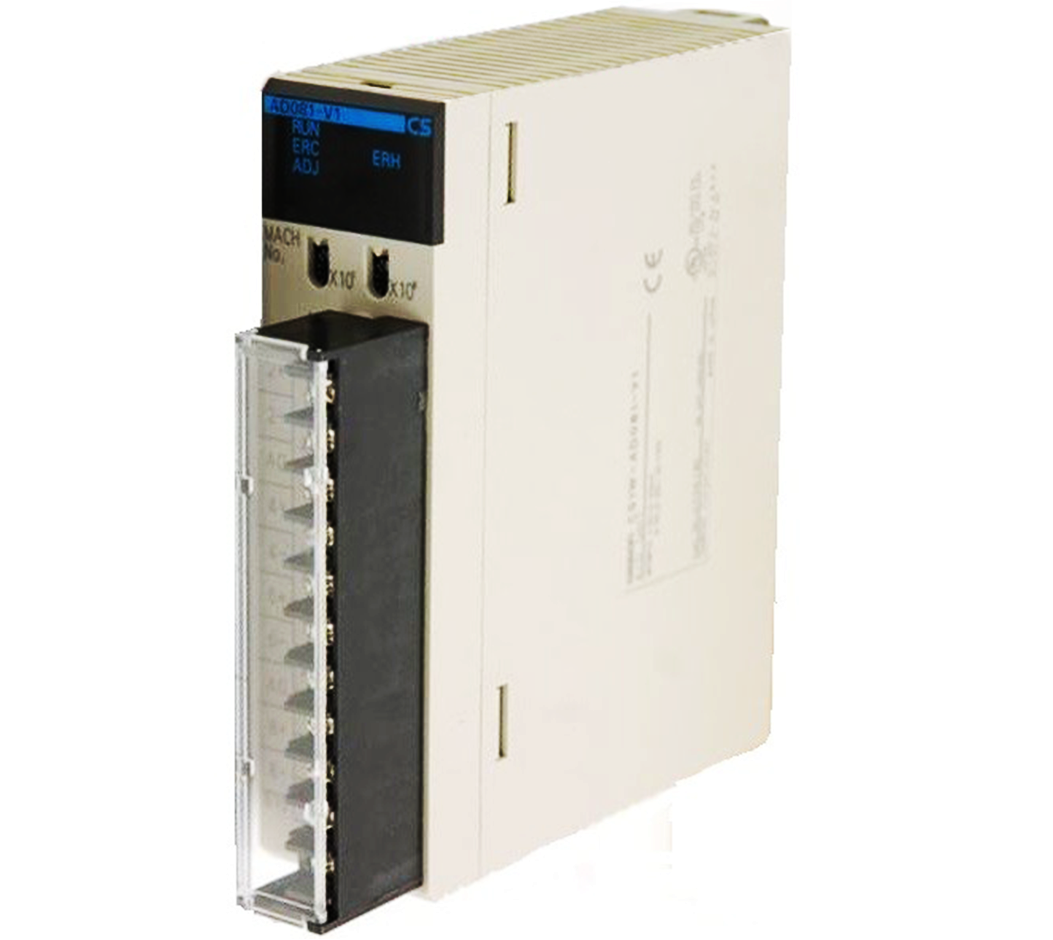

Omron | CS1W-AD081-V1 | Analog Input Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron CS1W-AD081-V1 stands as a highly reliable and efficient analog input unit within the SYSMAC CS-series, designed to seamlessly integrate external analog signals into your programmable logic controller (PLC) system. This particular unit excels at transforming incoming analog data, whether voltage or current, into digital binary representations, ensuring precise control and monitoring. Furthermore, it incorporates advanced functionalities like disconnection detection, ensuring signal integrity, alongside peak hold and averaging features, which are vital for nuanced data analysis and system stability.
It's engineered to be a flexible component, capable of accepting various input signal ranges, thereby catering to a wide array of industrial sensor and transducer applications. Installation is straightforward, utilizing a detachable terminal block for secure wiring, while its compact dimensions ensure efficient use of panel space. This unit is a testament to Omron's commitment to delivering high-performance automation solutions that meet stringent industry standards, offering both reliability and technical sophistication for demanding control environments.
| Parameter | Specification |
|---|---|
| Unit Type | CS1 Special I/O Unit |
| Number of Input Channels | 8 |
| Input Type | Voltage / Current (selectable) |
| Voltage Input Ranges | 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V |
| Current Input Range | 4 to 20 mA |
| A/D Conversion Speed | 100 to < 500 ¦ÌS (min.) to 1 ms (max., dependent on resolution) |
| Resolution | 4,000 / 8,000 (selectable) |
| Power Consumption (5 VDC) | 150 mA max. |
| Power Consumption (26 VDC) | 55 mA max. |
| External Terminals | 21-point detachable terminal block (M3 screws) |
| Dimensions (W ¡Á H ¡Á D) | 35 ¡Á 130 ¡Á 126 mm |
| Weight | 450 g max. |
| Operating Temperature | 0 to 55 ¡ãC |
| Isolation | Between I/O and PLC signals: Photocoupler (No isolation between individual I/O signals) |
| Standard Compliance | CE, UL, cUL, CSA |
| Key Functions | Disconnection detection, Peak hold, Averaging |
