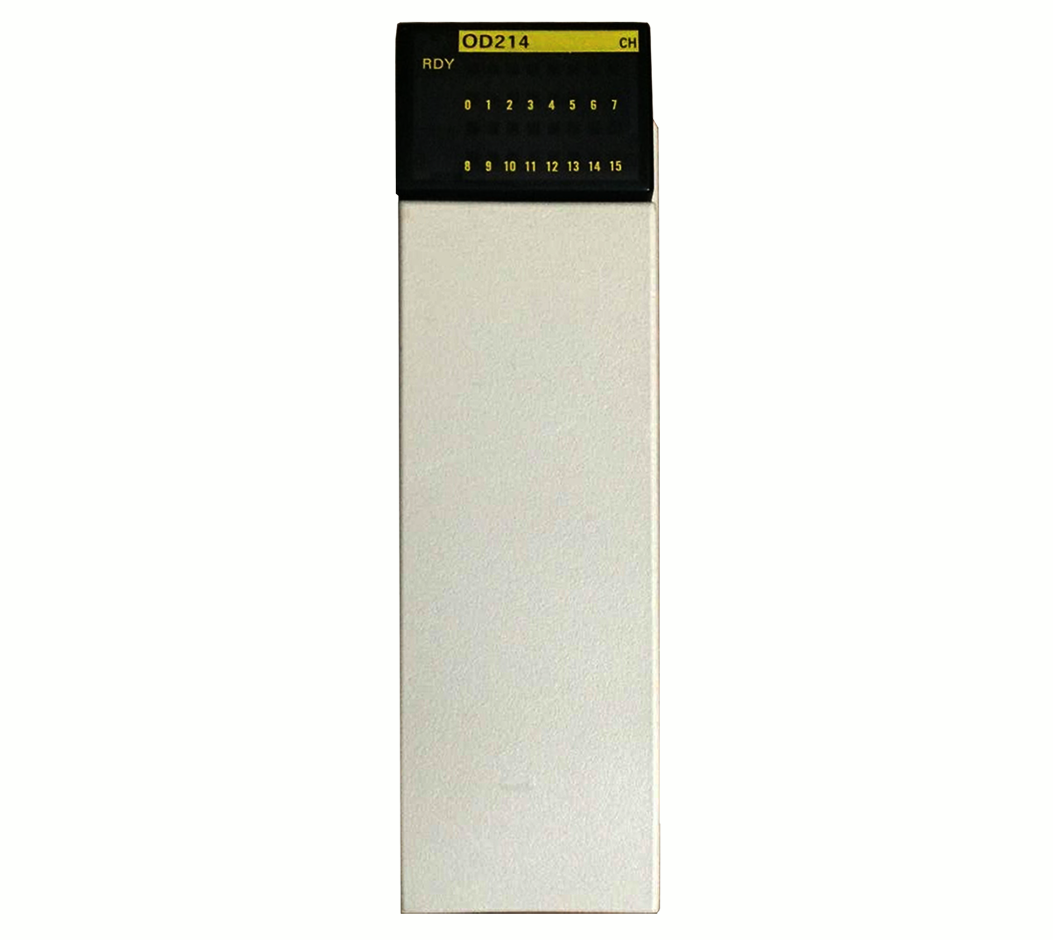

Omron | CQM1-OD214 | Transistor Output Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for demanding industrial automation applications, the Omron CQM1-OD214 is a highly reliable 16-point PNP transistor output module. This unit delivers precise and rapid switching operations, making it an ideal choice for controlling a multitude of external devices within complex systems. Its robust design, coupled with fast response times and stable performance, guarantees seamless integration and optimal efficiency in factory environments, providing dependable management of peripheral equipment.
| Parameter | Specification |
|---|---|
| Product Type | Transistor Output Module |
| Output Type | PNP Transistor |
| Output Points | 16 |
| Rated Voltage | 5-24 VDC |
| Max. Switching Capacity | 50 mA at 4.5 VDC; 300 mA at 26.4 V |
| Internal Current Consumption | 170 mA max. at 5 VDC |
| Leakage Current | 0.1 mA max. |
| Residual Voltage | 0.8 V max. |
| ON Delay | 0.1 ms max. |
| OFF Delay | 0.4 ms max. |
| Fuses | (2) 3.5 A per common (non-replaceable) |
| Mounting Type | DIN Rail |
| Termination | Screw Terminals |
| Operating Temperature | 0 to 55 ¡ãC |
| Weight | 210 g (0.463 lb) |
| Dimensions (L x B x D) | 110 mm x 32 mm x 107 mm (approx.) |
