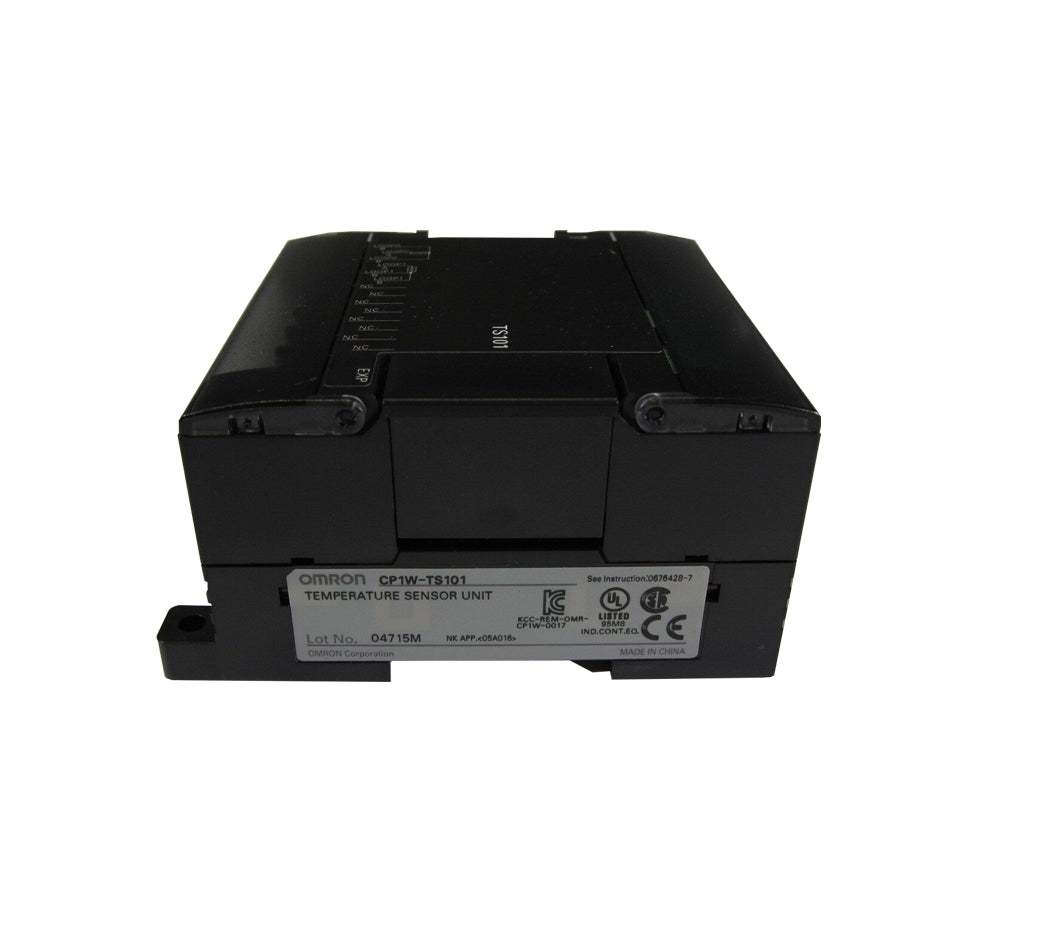

Omron | CP1W-TS101 | Temperature Control Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting temperature control within diverse industrial environments, the Omron CP1W-TS101 stands as an indispensable analog RTD input expansion unit. This compact, yet powerful, module effortlessly integrates with Omron's CP1H, CP1L, and even CP1E series PLCs, significantly extending their sensing capabilities. It¡¯s equipped with two high-precision channels, adept at handling Pt100 and JPt100 resistance thermometers, thus ensuring accurate and reliable data acquisition for everything from industrial process monitoring to demanding HVAC systems.
Its design prioritizes both performance and operational simplicity. With straightforward DIN rail mounting and secure screw-type I/O connections, installation is remarkably efficient, minimizing downtime and maximizing system uptime. Furthermore, this unit boasts comprehensive certifications, including cULus Class I Division 2 for hazardous locations, providing critical assurance for demanding applications.
| Parameter | Specification |
|---|---|
| Module Type | Analog RTD Input Expansion Unit |
| Compatible PLCs | Omron CP1H, CP1L, CP1E Series |
| Temperature Input Type | Pt100, JPt100 |
| Number of Analog Inputs | 2 channels |
| Resolution | 12 Bit |
| Current Consumption (5 VDC) | 54 mA max. |
| Supply Voltage | 5 VDC or 24 VDC |
| Isolation | Photocoupler isolation |
| Conversion Time | 250 ms (for 2 input points) |
| Dimensions (HxWxD) | 90 mm x 86 mm x 50 mm |
| Mounting | DIN Rail |
| Protection Class | IP20 |
| Certifications | cULus Class I Div. 2, CE, RoHS, Lloyd, NK |
