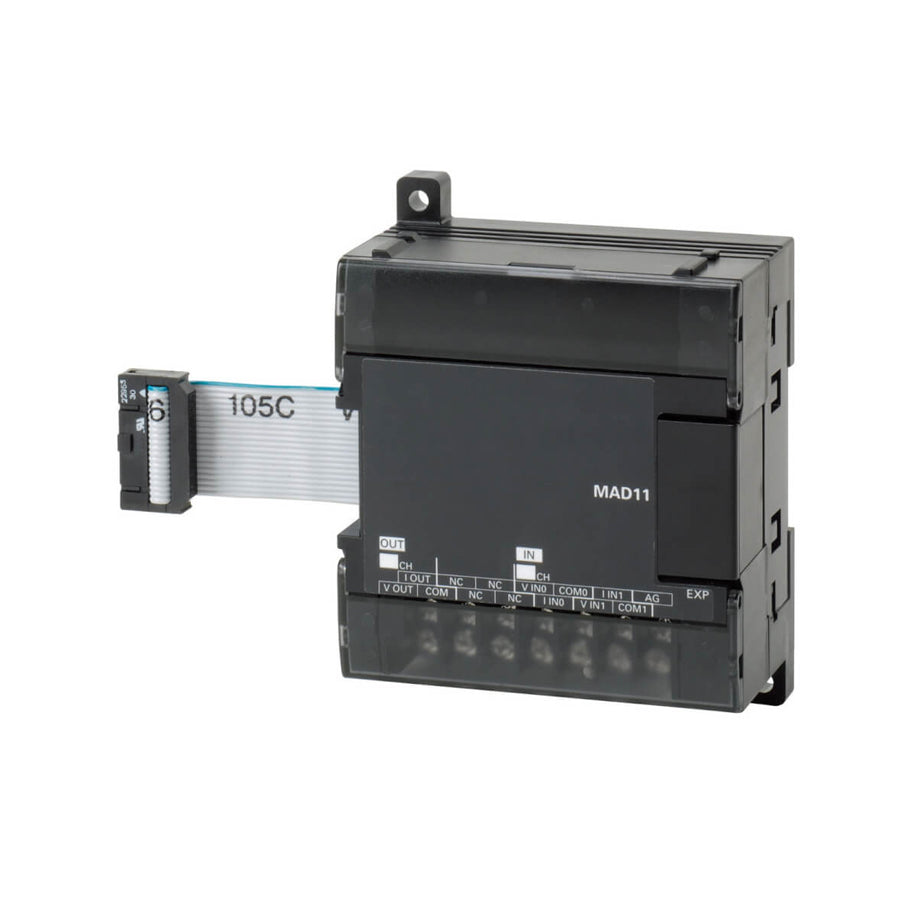

Omron | CP1W-MAD11 | Analog I/O Units
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed as a crucial analog I/O expansion unit, the Omron CP1W-MAD11 seamlessly integrates with CP1 series Programmable Logic Controllers, thus extending their analytical and control capabilities. This versatile unit capably handles a variety of analog signals, moreover, it facilitates precise data conversion for both input and output, making it an indispensable component in complex factory automation environments where accuracy and reliability are paramount.
| Parameter | Specification |
|---|---|
| Type of Unit | Analog I/O Expansion Unit |
| Number of Analog Inputs | 2 |
| Linear Analog Input Type | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Resolution of Analog Inputs | 12 Bit (1:6000) |
| Number of Analog Outputs | 1 |
| Linear Analog Output Type | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Resolution of Analog Outputs | 12 Bit (1:6000) |
| Supply Voltage | 5 VDC or 24 VDC (from CPU Unit) |
| Current Consumption (5VDC) | 83 mA max |
| Current Consumption (24VDC) | 110 mA max |
| Mounting Type | DIN Rail |
| Degree of Protection | IP20 |
| Product Dimensions (H x W x D) | 90 mm x 86 mm x 50 mm (unpacked) |
| Product Weight (unpacked) | 250 g |
