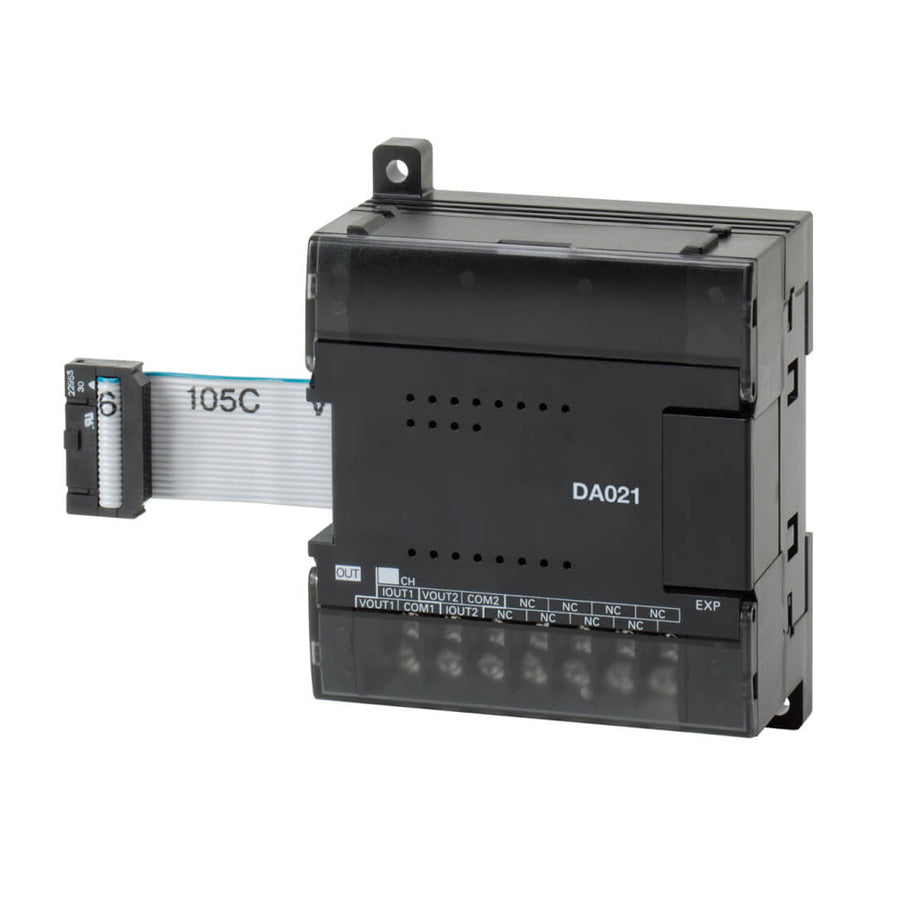

Omron | CP1W-DA021 | Analog Output Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Omron CP1W-DA021 stands as a vital analog output expansion module, seamlessly integrating with Omron's robust CP1 series PLCs to significantly augment their control capabilities. This sophisticated module is equipped with two dedicated analog output channels, adept at delivering precise voltage signals from 0-10 VDC, -10 to 10 VDC, 0-5 VDC, and 1-5 VDC, alongside current outputs of 4-20 mA and 0-20 mA. Its impressive 1/6,000 resolution ensures exceptionally meticulous adjustments and unwavering performance, proving indispensable for demanding industrial applications such as variable frequency drives, proportional valves, and intricate HVAC systems. Designed for effortless integration, the CP1W-DA021 draws power directly from the connected CP1H, CP1L, or CP1E PLC, thus simplifying installation while enhancing system functionality without additional power supply requirements.
| Parameter | Specification |
|---|---|
| Module Type | Analog Output Module |
| Number of Outputs | 2 Channels |
| Output Voltage Ranges | 0-10 VDC, -10 to 10 VDC, 0-5 VDC, 1-5 VDC |
| Output Current Ranges | 4-20 mA, 0-20 mA |
| Resolution | 1/6,000 (13 Bit) |
| Compatible PLC Series | Omron CP1H, CP1L, CP1E |
| Power Supply | Supplied by PLC (5VDC or 24VDC) |
| Connection Type | Screw Terminal |
| Mounting Type | DIN Rail / Side Attachment to PLC Base |
| Dimensions (H x W x D) | 90 mm x 86 mm x 50 mm |
| Current Consumption (5Vdc) | 0.04 A |
| Weight | 0.2 kg (200 g) |
