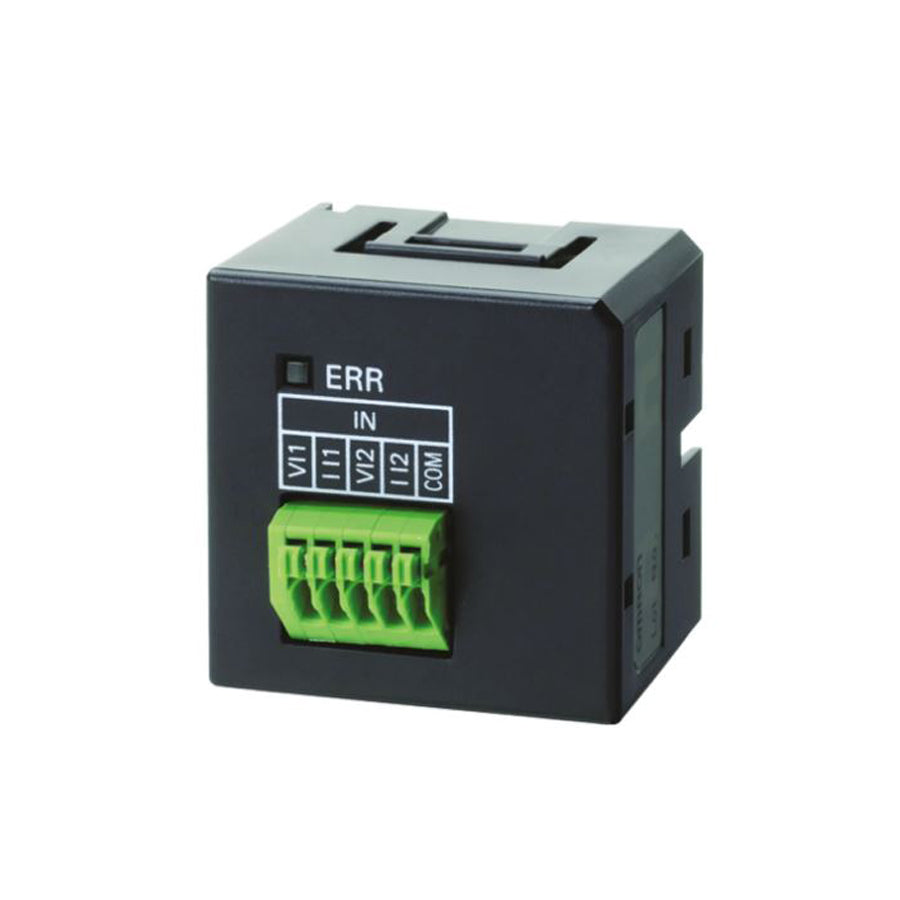

Omron | CP1W-ADB21 | Analog Input Option Board
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
When expanding your Omron CP1L-EL/EM PLC system, the CP1W-ADB21 analog input option board truly stands out. This compact yet powerful module effortlessly integrates, providing two high-resolution analog input channels that are absolutely critical for precise process monitoring and effective control within demanding industrial environments. It capably handles both 0-10VDC and 0-20mA signals, offering the detailed data acquisition necessary for optimizing automation applications.
Furthermore, its design ensures straightforward installation, featuring secure screw-clamp connections for reliable operation; engineers can appreciate this thoughtful detail. Ultimately, this board significantly enhances your system¡¯s ability to acquire and process diverse analog signals with exceptional accuracy and minimal fuss.
| Specification | Detail |
|---|---|
| Input Channels | 2 Analog Inputs |
| Compatible PLC Series | Omron CP1L-EL/EM Series |
| Voltage Input Range | 0 to 10 VDC |
| Voltage Input Resolution | 1/4000 (12-bit) |
| Current Input Range | 0 to 20 mA (supports 4-20mA) |
| Current Input Resolution | 1/2000 |
| Isolation Method | None |
| Current Consumption (5 VDC) | 20 mA max. |
| External Input Impedance (Voltage) | 200 k¦¸ min. |
| External Input Impedance (Current) | Approx. 250 ¦¸ |
| Overall Accuracy (25¡ãC, Voltage) | ¡À0.5% of full scale |
| Overall Accuracy (25¡ãC, Current) | ¡À0.6% of full scale |
| Conversion Time | 2 ms/point |
| I/O Connection Type | Screw Clamp |
