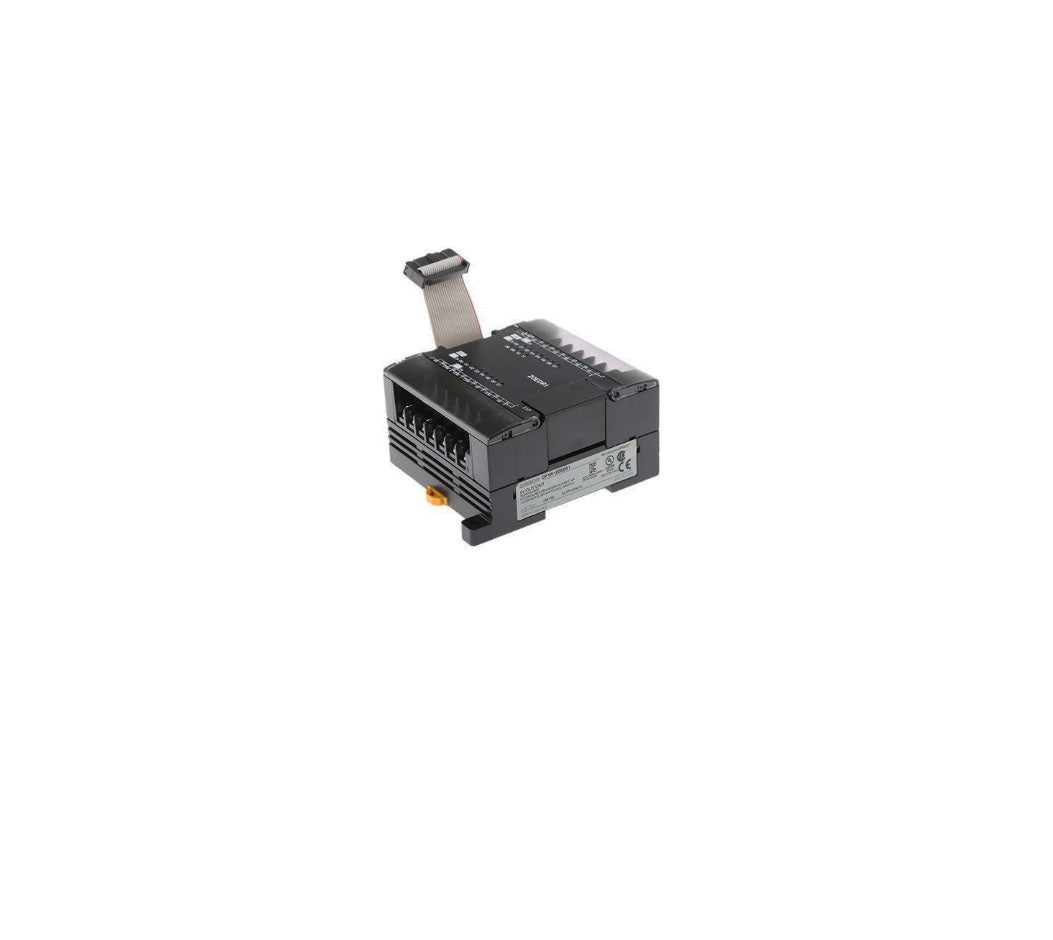

Omron | CP1W-20EDR1 | Expansion Input Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed to expand the capabilities of Omron's SYSMAC CP1 Series PLCs, the CP1W-20EDR1 is a highly effective I/O expansion module. This unit delivers 12 digital inputs and 8 robust relay outputs, significantly enhancing control potential for applications demanding expanded I/O. Crucially, its compact design ensures it integrates effortlessly into existing control cabinets while offering reliable, high-performance operation in various industrial automation and machine control environments.
| Parameter | Specification |
|---|---|
| Module Type | Digital I/O Expansion Unit |
| Compatible PLC Series | Omron SYSMAC CP1E, CP1L, CP1H Series |
| Digital Inputs | 12 (24 VDC) |
| Digital Input Type | PNP/NPN Compatible |
| Digital Outputs | 8 (Relay, Normally Open Contact) |
| Output Current Rating | 2 A per point, 8 A total per unit (max) |
| Permitted Input Voltage | 20.4 to 26.4 VDC |
| Permitted Output Voltage | 5 to 250 VAC / 5 to 30 VDC |
| Current Consumption (5Vdc) | 0.103 A |
| Mounting Method | DIN Rail or Screw-mount |
| Dimensions (H x W x D) | 90 x 86 x 50 mm |
| Protection Class | IP20 |
| Operating Temperature | 0¡ãC to +55¡ãC |
| Certifications | CE, UL, RoHS |
