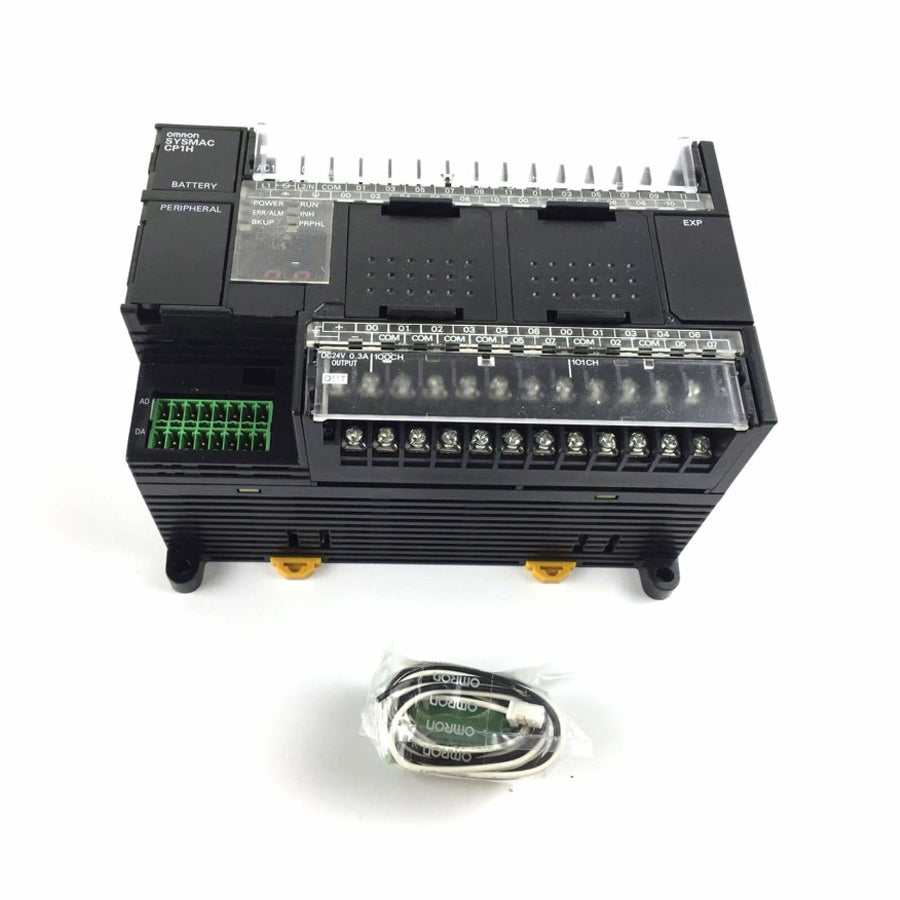

Omron | CP1H-XA40DR-A | CP1H CPU Units
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Experience unparalleled control and precision with the Omron CP1H-XA40DR-A, a sophisticated and highly versatile PLC from the renowned SYSMAC CP1H series. This unit is meticulously engineered for high-speed performance, making it an ideal solution for intricate automation tasks demanding accurate multi-axis positioning. Furthermore, its integrated analog I/O capabilities simplify setup for applications requiring sophisticated loop control, leveraging the PLC's advanced PID functions with auto-tuning. Whether you're managing complex motion or precise process variables, the CP1H-XA40DR-A delivers robust and reliable operation, offering remarkable extensibility for diverse industrial environments.
| Parameter | Specification |
|---|---|
| Supply Voltage | 100-240 VAC (50/60Hz) |
| Total I/O Points | 40 (24 Inputs / 16 Outputs) |
| Digital Inputs | 24 (24VDC, PNP/NPN type) |
| Digital Outputs | 16 (Relay type, 2A) |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Program Capacity | 20 K steps |
| Data Memory Capacity | 32 K words |
| Logic Execution Time | 0.10 ¦Ìs |
| Communication Ports | USB (Standard), 2 x Optional Serial Ports (RS-232C/RS-485) |
| Operating Temperature | 0 to 55 ¡ãC |
| Mounting Type | DIN Rail, Chassis Mount, Panel |
| Dimensions (H x W x D) | 110mm x 150mm x 85mm |
| Approximate Weight | 750 - 771 g |
| High-Speed Counter / Pulse Output | 4 axes, 100 kHz (differential phase for counters; for positioning control) |
