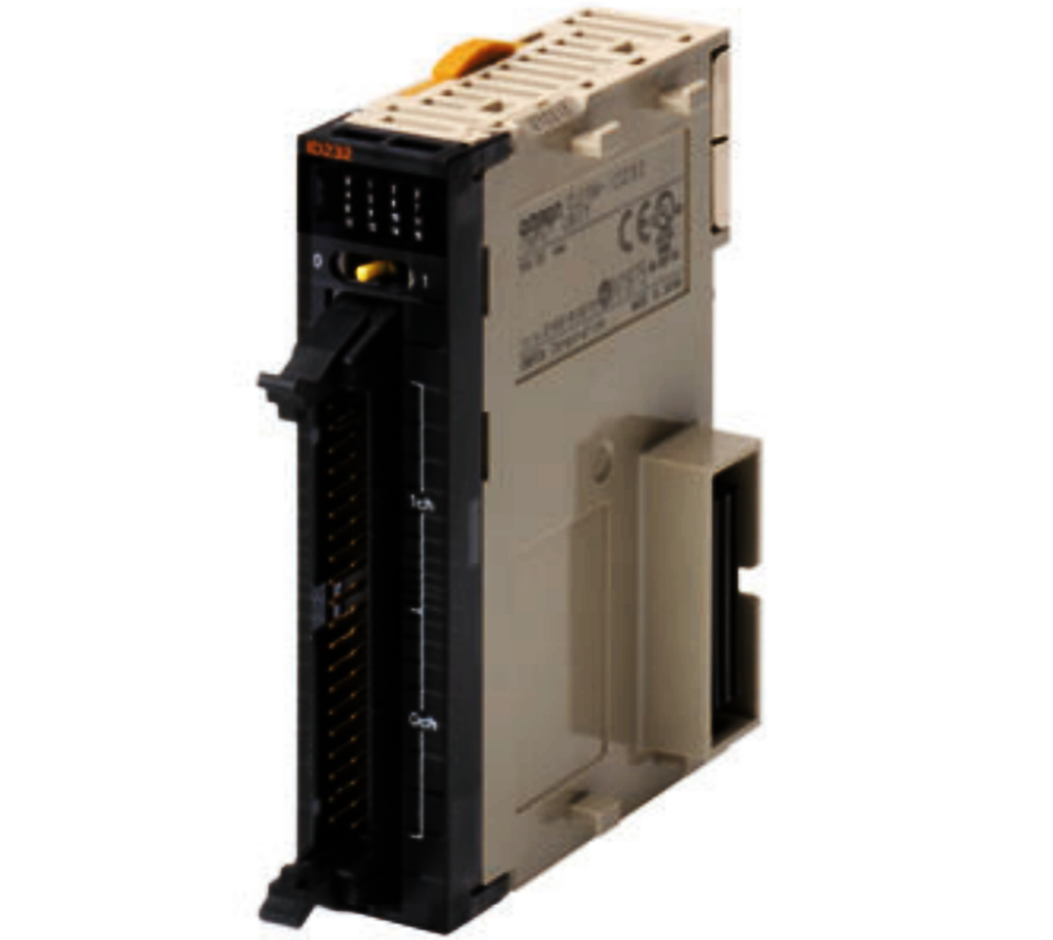

Omron | CJ1W-OD234 | Transistor Output Unit (32 Points)
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for high-performance industrial automation, the Omron CJ1W-OD234 stands out as a critical component for sophisticated control systems. This 32-point NPN transistor output unit delivers rapid and precise ON/OFF control, making it exceptionally well-suited for demanding applications within the Omron CJ-series PLC architecture. Its advanced design not only ensures robust operation but also significantly boosts system throughput, providing the reliability and speed control engineers and purchasing managers expect for high-value automation products.
| Parameter | Specification |
|---|---|
| Model | CJ1W-OD234 |
| Type of Module | Digital I/O Output Unit |
| Number of Digital Outputs | 32 points |
| Digital Output Type | NPN (Sinking Outputs) |
| Rated Voltage | 24 VDC |
| Operating Load Voltage Range | 20.4 to 26.4 VDC |
| Maximum Load Current | 0.5 A/point, 2 A/common, 4 A/Unit |
| Maximum Inrush Current | 4.0 A/point, 10 ms max. |
| Leakage Current | 0.1 mA max. |
| ON Response Time | 15 ¦Ìs max. |
| OFF Response Time | 80 ¦Ìs max. |
| I/O Connection Type | MIL Connector (plug not included) |
| I/O System | CJ I/O Bus |
| Dimensions (H x W x D) | 90 mm x 20 mm x 83.6 mm |
| Product Weight | 95 g |
