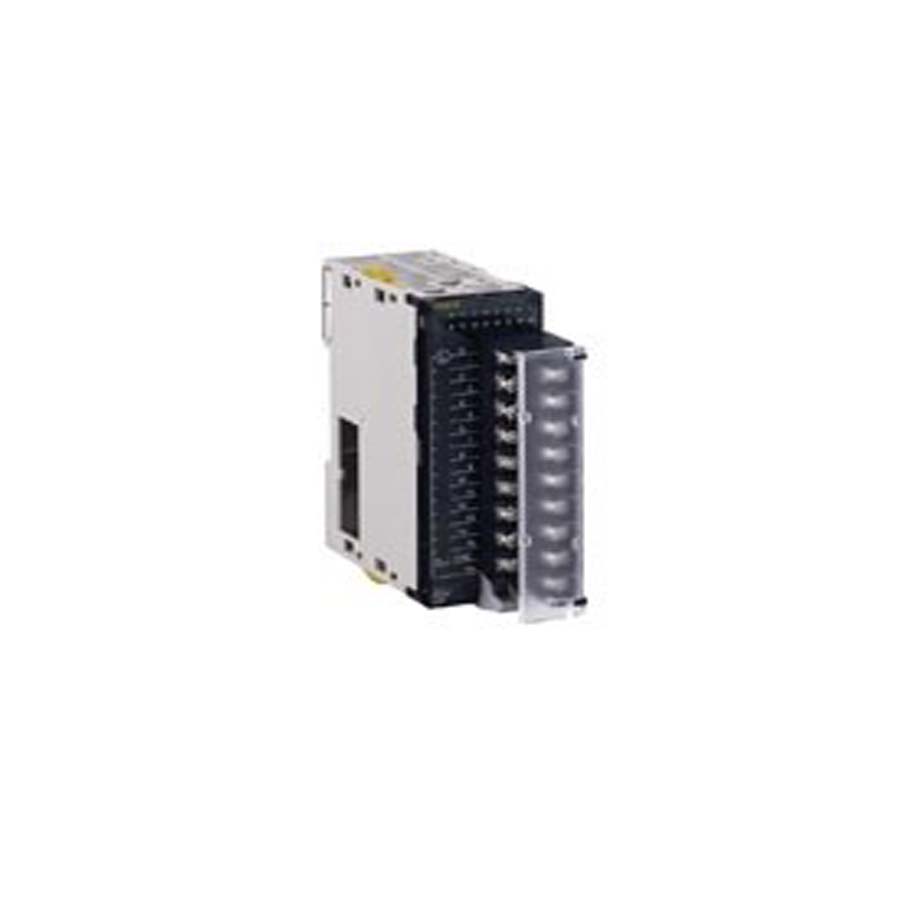

Omron | CJ1W-OD233 | Transistor Output Unit
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for unwavering performance in demanding industrial environments, the Omron CJ1W-OD233 offers exceptional control capabilities. This 32-point NPN transistor output unit seamlessly integrates into Omron CJ-series programmable controllers, providing reliable and precise switching for a multitude of external devices. Its compact design ensures efficient use of cabinet space, while comprehensive certifications underscore its suitability for even hazardous locations. Ultimately, this module is a fundamental component for expanding your automation system's reach and ensuring stable operation across a wide range of applications.
| Parameter | Specification |
|---|---|
| Output Type | NPN (Sinking) Transistor |
| Number of Outputs | 32 Points |
| Rated Voltage | 12 to 24 VDC |
| Operating Load Voltage Range | 10.2 to 26.4 VDC |
| Max. Load Current per Point | 0.5 A |
| Max. Inrush Current | 4.0 A/point (10 ms max.) |
| Leakage Current | 0.1 mA max. |
| ON Response Time | 0.1 ms max. |
| OFF Response Time | 0.8 ms max. |
| Internal Current Consumption | 140 mA (at 5 VDC) |
| Connection Type | MIL Connector |
| Mounting Method | DIN Rail |
| Protection Class | IP20 |
| Certifications | cULus (Class I Div 2), CE, UL, CUL, CSA, RoHS |
| Dimensions (H x W x D) | 90 mm x 20 mm x 83.6 mm |
| Weight | 70 g |
