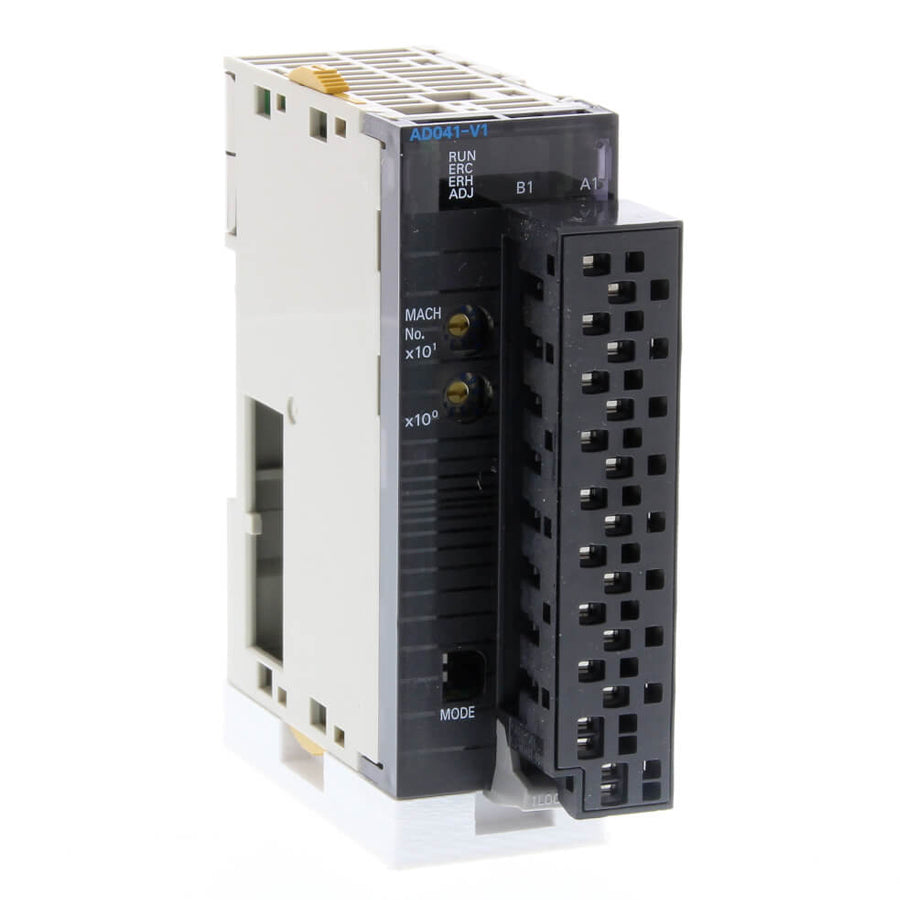

Omron | CJ1W-AD041-V1 | Analog Input Units
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
For discerning control engineers and purchasing managers alike, the Omron CJ1W-AD041-V1 analog input unit stands as a remarkably versatile and high-performance solution within the revered SYSMAC CJ series. This compact yet powerful module adeptly handles four analog inputs, converting a wide array of voltage and current signals into precise 16-bit binary data with impressive speed. Indeed, its 1/8000 resolution, coupled with a rapid 250-microsecond conversion time per point, ensures exceptionally accurate and timely data acquisition; consequently, it's an ideal choice for critical process monitoring, intricate data acquisition systems, and enhancing overall PLC capabilities in demanding factory automation environments. Furthermore, its robust design, including screw-type I/O connections and DIN rail mounting, simplifies integration, making it an indispensable component for reliable industrial control.
| Parameter | Specification |
|---|---|
| Number of Analog Inputs | 4 |
| Input Signal Ranges (Voltage) | 1-5 V, 0-5 V, 0-10 V, -10-10 V |
| Input Signal Ranges (Current) | 4-20 mA |
| Resolution | 1/8000 (High-Speed Mode) |
| A/D Conversion Period | 250 ¦Ìs/point (High-Speed Mode) |
| Converted Output Data | 16-bit binary data |
| Accuracy (at 25¡ãC) | Voltage: ¡À0.2% of F.S.; Current: ¡À0.4% of F.S. |
| Maximum Rated Input (Voltage) | ¡À15 V |
| Maximum Rated Input (Current) | ¡À30 mA |
| Input Impedance (Voltage) | 1 M¦¸ min. |
| Input Impedance (Current) | 250 ¦¸ (rated value) |
| Isolation | Photocoupler (between I/O and Controller signals) |
| Power Consumption (5VDC) | 420 mA max. |
| External Terminals | 18-point detachable terminal block (M3 screws) |
| Dimensions (W ¡Á H ¡Á D) | 31 ¡Á 90 ¡Á 65 mm |
| Weight | 140 g max. |
