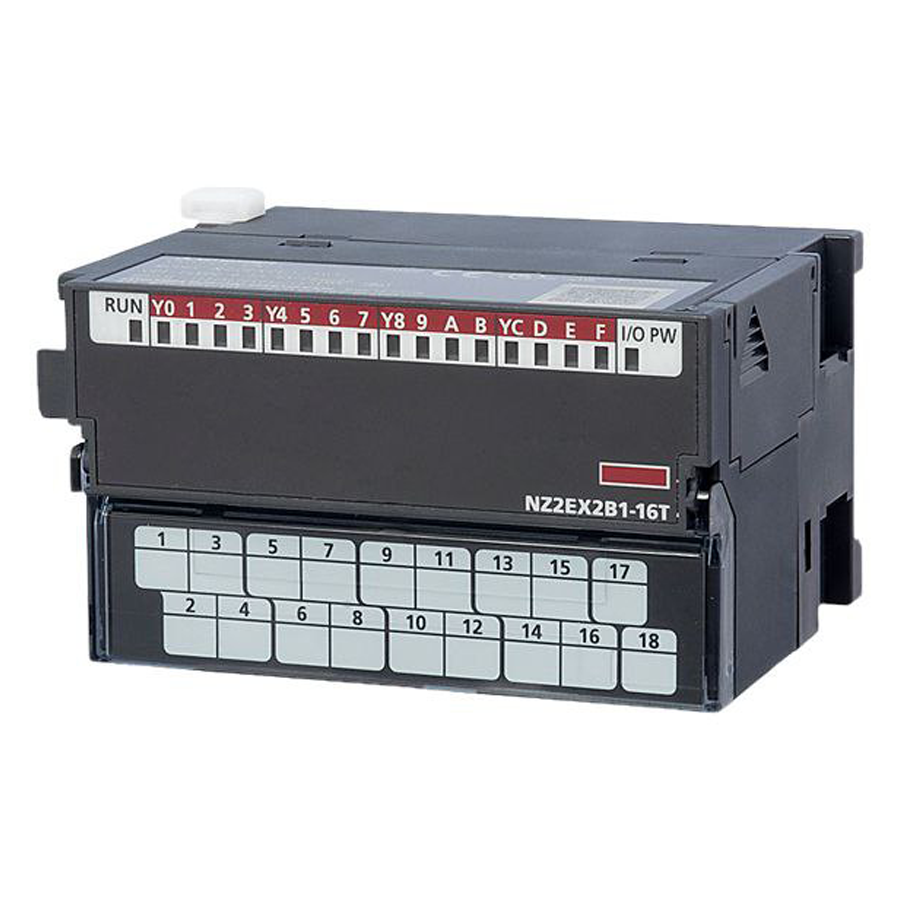

NZ2EX2B1-16T | Mitsubishi| Transistor Output Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for demanding industrial environments, the Mitsubishi NZ2EX2B1-16T delivers reliable 16-point transistor output, enhancing modular remote I/O configurations. This essential module supports 12/24V DC applications, moreover, its integrated protection features and quick response times ensure precise control and operational longevity. It's an excellent choice for expanding system functionality where dependable digital output is paramount, seamlessly integrating into your existing CC-Link IE Field Network architecture for distributed control. While now discontinued, its established performance continues to make it a valuable component for maintenance or specific legacy system upgrades.
| Parameter | Specification |
|---|---|
| Model Name | NZ2EX2B1-16T |
| Output Type | Transistor output (sink type) |
| Number of Output Points | 16 points |
| Rated Load Voltage | 12/24 V DC (10.2-28.8 V DC allowable range) |
| Max. Load Current/Point | 0.5 A |
| Max. Load Current/Common | 4 A |
| OFF to ON Response Time | 0.5 ms or less |
| ON to OFF Response Time | 1.5 ms or less (resistive load) |
| Output Isolation Method | Photocoupler |
| Surge Suppressor | Zener diode |
| Protection Functions | Overheat protection, Overload protection |
| External Power Supply Voltage (Output) | 12-24 V DC (10.2-28.8 V DC allowable range) |
| Conformance Standards | UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV |
| Wiring Type | 1-wire, terminal block type |
