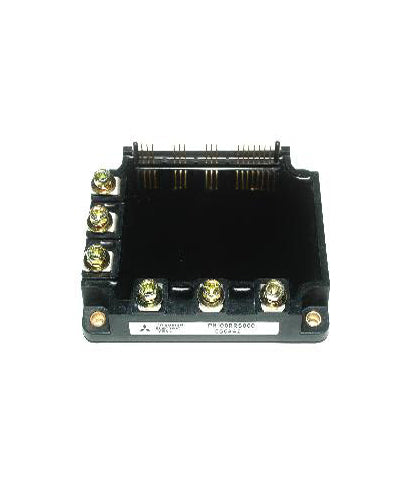

Mitsubishi|Transistor Block: PM100RRS060
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This advanced Mitsubishi PM100RRS060 Intelligent Power Module (IPM) stands out with its remarkable integration of high-performance components and sophisticated protection features. Built upon a new 5th generation Full-Gate CSTBTTM chip, this module delivers exceptional efficiency and reliability, making it an ideal choice for demanding industrial applications. Furthermore, its comprehensive design includes integrated over-temperature protection, which actively monitors the chip surface, alongside precise error output signals from both upper and lower arm devices, thus ensuring enhanced system safety and diagnostics. Ultimately, this IPM is purpose-built for optimizing general purpose inverters, various servo drives, and an array of other critical motor control systems.
| Parameter | Specification |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Collector Current (IC) (TC = 25¡æ) | 100A |
| Peak Collector Current (ICP) (TC = 25¡æ) | 200A |
| Collector Dissipation (PC) (TC = 25¡æ) | 390W |
| Junction Temperature (Tj) | -20 to +150¡æ |
| Voltage Isolation (Viso) | 2500VDC |
| Configuration | 3-Phase |
| Package Type | Flat-Base Type Insulated Package |
