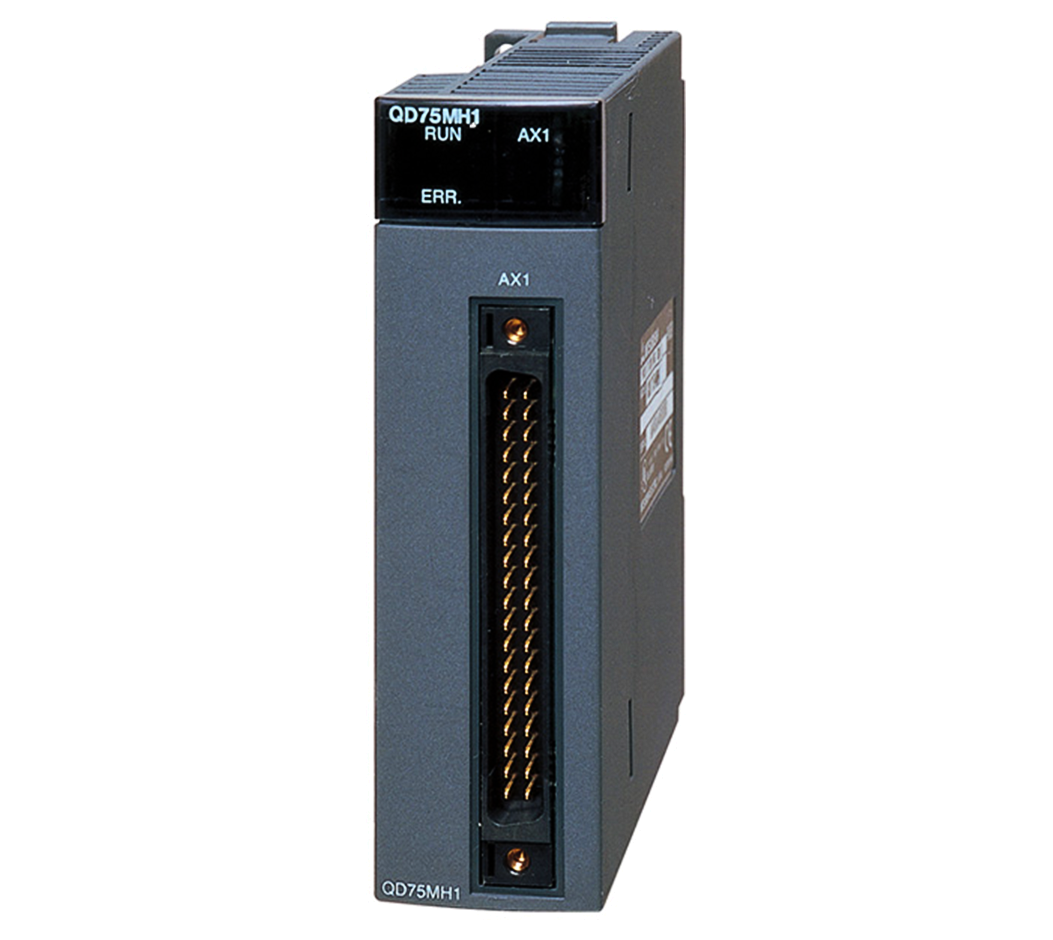

Mitsubishi QD75MH1
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exacting industrial environments, the Mitsubishi QD75MH1 emerges as a robust MELSEC-Q Series positioning module, specifically tailored for sophisticated single-axis motion control applications. This unit distinguishes itself with rapid calculation cycles and an inherently seamless integration capability, communicating efficiently with MR-J3-series servo amplifiers through the high-speed SSCNET III network. Consequently, it¡¯s an ideal candidate for intricate, high-precision automation tasks where reliability and swift response are paramount.
| Parameter | Specification |
|---|---|
| Number of Control Axes | 1 axis |
| Number of Positioning Data | 600 data/axis |
| Calculation Cycle | 1.77 ms |
| Servo Amplifier Interface | High-speed serial communication system (SSCNET III) |
| Connectable Servo Amplifier | Mitsubishi general-purpose servo amplifier (MR-J3-¡õB) |
| Emergency Stop Input | 24 VDC |
| Control Unit | mm, inch, degree, pulse |
| Data Backup | Flash EPROM; battery unnecessary |
| PLC Slot/I/O Points | 1 slot / 32 I/O points |
| Positioning Control System | PTP (point-to-point) control, path control, speed control, speed-position switching control |
| Conformance Standard | UL, cUL, CE(EMC), CE(RoHS), KC(EMC) |
| Connector Type | 40-pin connector (A6CON1/A6CON2/A6CON3/A6CON4 to be ordered separately) |
