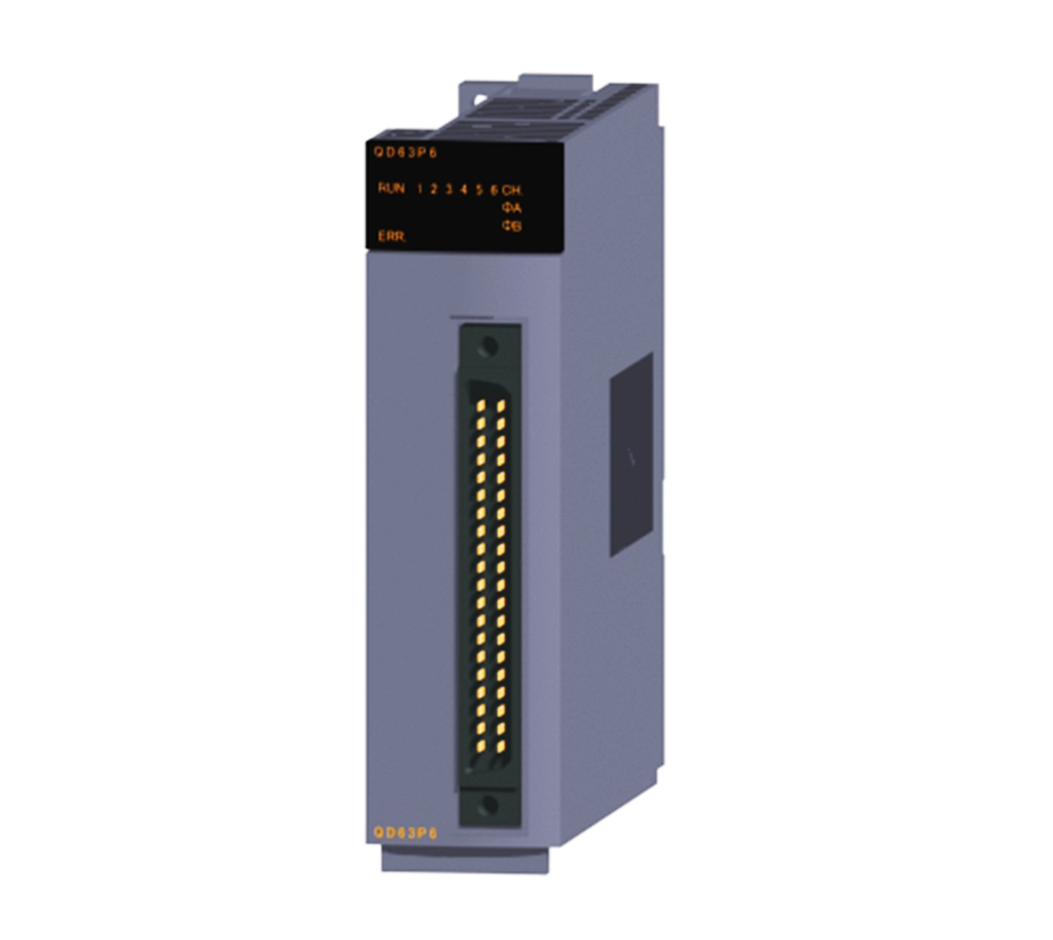

Mitsubishi Multichannel high-speed counter unit QD63P6
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QD63P6 MELSEC-Q Series high-speed counter module provides 6 channels for exceptionally precise pulse signal processing in diverse industrial automation environments. Ideal for demanding applications like synchronized machinery, conveyors, and intricate packaging systems, it guarantees accurate position feedback and rotational speed measurement, crucially enhancing overall machine performance and operational reliability.
| Parameter | Specification |
|---|---|
| Series | MELSEC-Q SERIES |
| Type | High-Speed Counter |
| Number of Channels | 6 |
| Max. Counting Speed | 200 kpps (selectable to 100k, 10k pps) |
| Counting Range | 32-bit signed binary (-2,147,483,648 to 2,147,483,647) |
| Internal Current Consumption (5 V DC) | 0.59 A |
| Count Input Signal Level | 5 V DC, 6.4 - 11.5 mA |
| Count Input Signal Phase | 1-phase input, 2-phase input, CW/CCW |
| External Interface | 40-pin connector |
| Number of Occupied I/O Points | 32 points (Intelligent 32 points) |
| Width | 27.4 mm |
| Height | 98 mm |
| Depth | 90 mm |
| Weight | 0.15 kg |
| Conformance Standards | ABS, BV, DNV GL, LR, NK, RINA, UL/cUL, CE (EMC, RoHS), UKCA, KC (EMC) |
