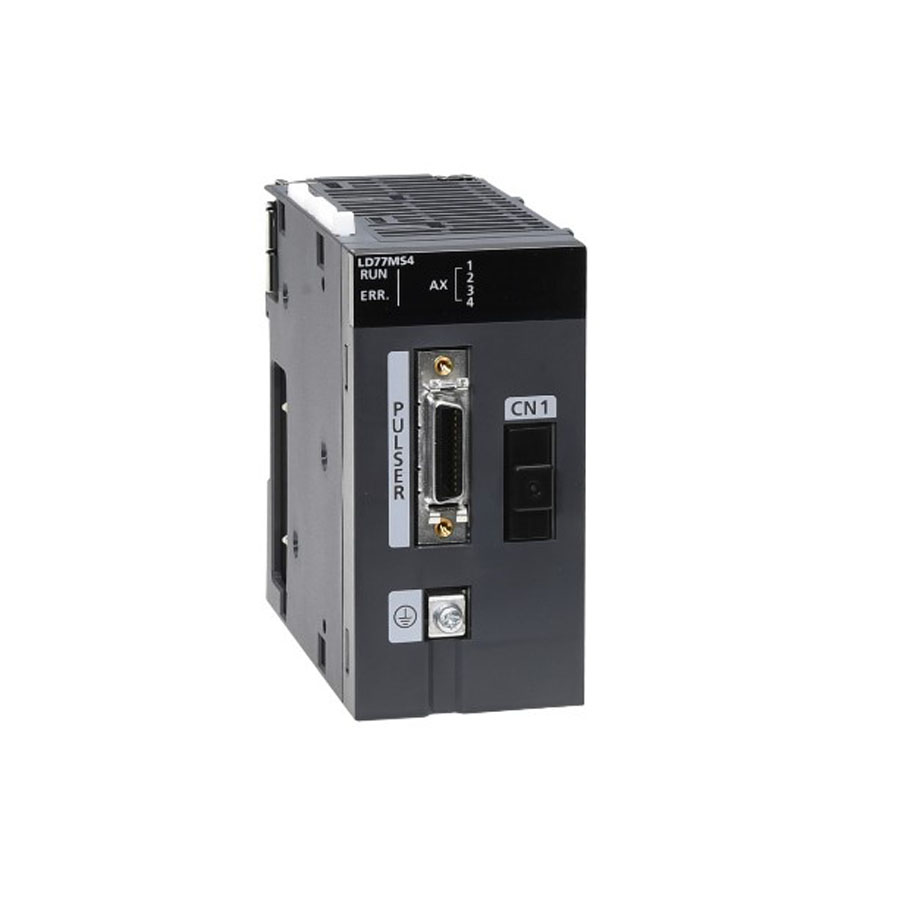

LD77MS4 | Mitsubishi| Simple Motion Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi LD77MS4 stands as a robust 4-axis Simple Motion Module within the MELSEC-L series, leveraging high-speed SSCNET III/H communication for unparalleled system responsiveness. It's engineered for demanding industrial environments, facilitating precise multi-axis motion control, including sophisticated positioning, synchronous, and cam functions, thus proving invaluable for modern automation systems that demand both power and precision.
| Parameter | Specification |
|---|---|
| Type | Simple Motion Module |
| Series | MELSEC-L SERIES |
| Number of Control Axes | Up to 4 axes |
| Command Interface | SSCNET III/H (150Mbps), SSCNET III |
| Operation Cycle | 0.88 ms / 1.77 ms (From 0.888 ms for LD77MS4) |
| Max. Distance Between Stations | 100 m (328.08 ft.) |
| Connectable Servo Amplifier | MR-J4-B(-RJ), MR-J4W-B, MR-JE-B |
| Program Capacity | 600 positioning data / axis |
| Interpolation Function | Linear (up to 4 axes), 2-axis Circular |
| Control Methods | PTP, Position, Speed, Torque, Cam, Synchronous Control |
| I/O Occupying Points | 32 points |
| 5V DC Internal Current Consumption | 0.55 A |
| Dimensions (W x H x D) | 45 mm x 90 mm x 95 mm |
| Mass | 0.22 kg |
| Conformity | CE, UL/cUL Compliant (EAC Non-compliant) |
