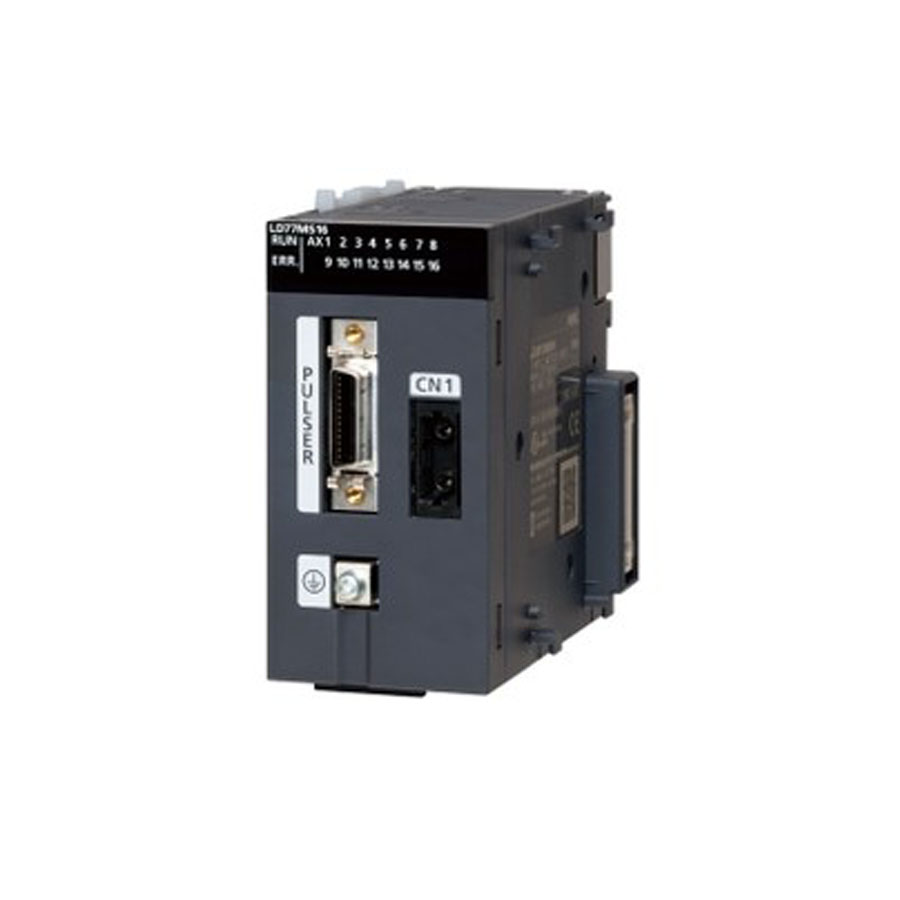

LD77MS16 | Mitsubishi| Simple Motion Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi LD77MS16 stands as a high-performance L-Series Simple Motion Module, truly a cornerstone for advanced industrial automation. It's meticulously engineered to deliver unparalleled precision and efficiency, fundamentally transforming complex motion control systems. With robust support for up to 16 axes simultaneously, this module is perfectly suited for intricate, multi-axis applications. Crucially, it leverages the ultra-fast SSCNET III/H (Super-Simple Communication Network III/High-Speed) communication protocol, ensuring rapid data transfer rates and remarkably reduced latency. This translates directly into enhanced synchronization and real-time operational excellence, which is absolutely vital for high-speed and high-precision tasks. Furthermore, its versatile design makes it ideal for a broad spectrum of applications, from sophisticated packaging machinery to dynamic material handling systems and other demanding automation tasks. The module¡¯s advanced diagnostics and monitoring capabilities further aid in minimizing downtime, thereby optimizing overall operational efficiency and ensuring a more reliable, productive system overall.
| Parameter | Specification |
|---|---|
| Series | MELSEC-L SERIES |
| Type | Simple Motion Module |
| Number of Control Axes | Up to 16 axes |
| Command Interface | SSCNET III/H (150Mbps) |
| Communication Speed | 150 Mbps full duplex (300 Mbps half duplex equivalent) |
| Operation Cycle | 0.88 ms / 1.77 ms |
| Connectable Servo Amplifiers | MR-J4-B(-RJ), MR-J4W-B, MR-JE-B |
| Control Modes | PTP, Position, Speed, Torque, Tightening & press-fit, Cam, Advanced synchronous, Linear interpolation (2/3/4 axes), Circular interpolation (2 axes), Trajectory, Speed-position switching, Position-speed switching |
| Program Capacity | 600 positioning data/axis |
| I/O Occupying Points | 32 points |
| 5VDC Internal Current Consumption | 0.70 A |
| Mass | 0.22 kg |
| Width | 45 mm |
| Height | 90 mm |
| Depth | 95 mm |
