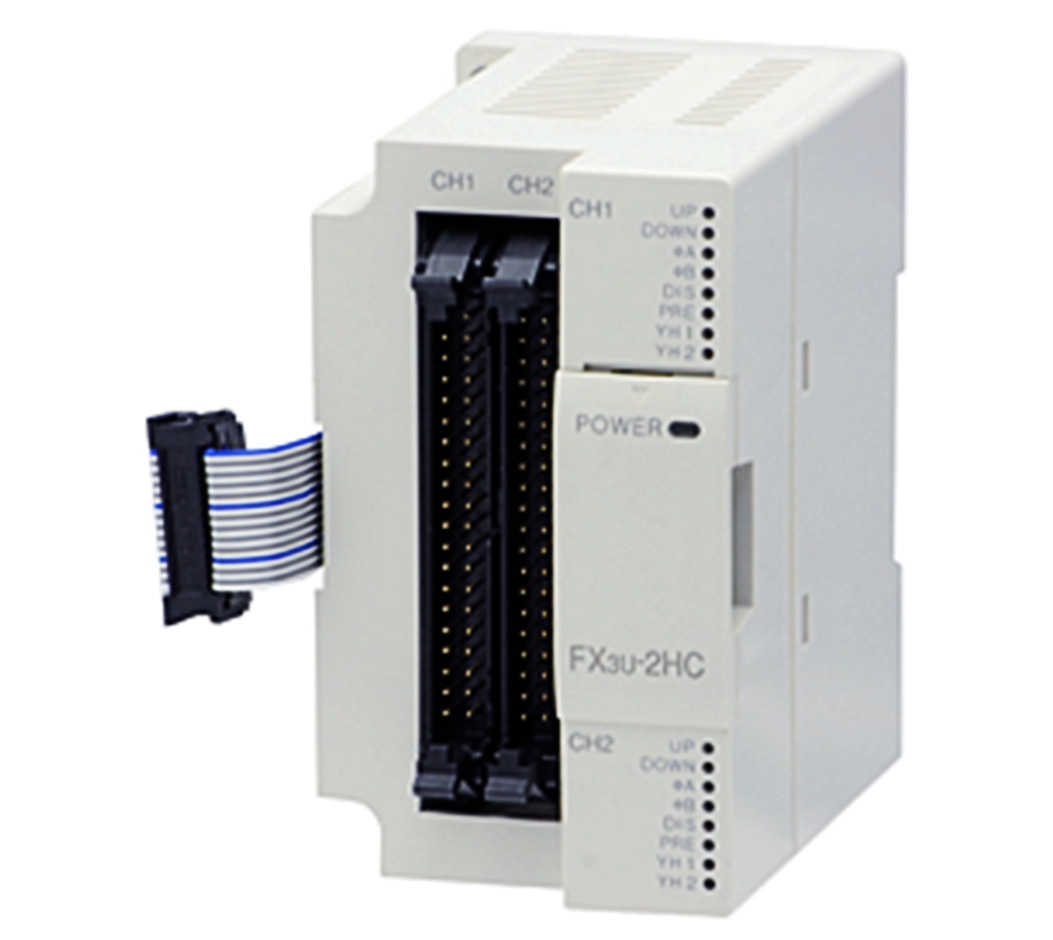

High speed counter block FX3U-2HC
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for the demanding environments of industrial automation, the Mitsubishi FX3U-2HC serves as a high-performance, two-channel high-speed counter module, proving indispensable for applications requiring utmost precision. This robust unit excels in accurate position control and rapid counting operations, making it an ideal choice for complex motion control and synchronization tasks within sophisticated automation systems. Furthermore, its versatile input options ensure broad compatibility with various sensors and encoders, while seamless integration with FX3U series PLCs guarantees efficient data transfer and streamlined operation.
| Parameter | Specification |
|---|---|
| Number of Channels | 2 channels |
| Max. Input Frequency | 200 kHz (1-phase 1 input, 1-phase 2 input, 2-phase 1 multiplication) |
| Input Type | Open collector, differential line driver |
| Input Voltage | DC 5V, DC 12V, DC 24V (selectable) |
| Output Format | Open collector output 2 points, 5-24V DC, 0.5A |
| Counter Mode | 16-bit or 32-bit selectable |
| Count Range (32-bit) | -2,147,483,648 to +2,147,483,647 |
| Occupied I/O Points | 8 points (input or output) |
| Power Supply | DC 5V 245mA (from sequencer) |
| Dimensions (W x H x D) | 55mm x 90mm x 87mm |
| Mass | 0.08 kg |
| Operating Ambient Temperature | 0 to 55¡ãC |
| Ambient Humidity | 5 to 95% RH (non-condensing) |
| Mounting Type | DIN rail |
| Compliance | CE, UL/cUL, UKCA |
