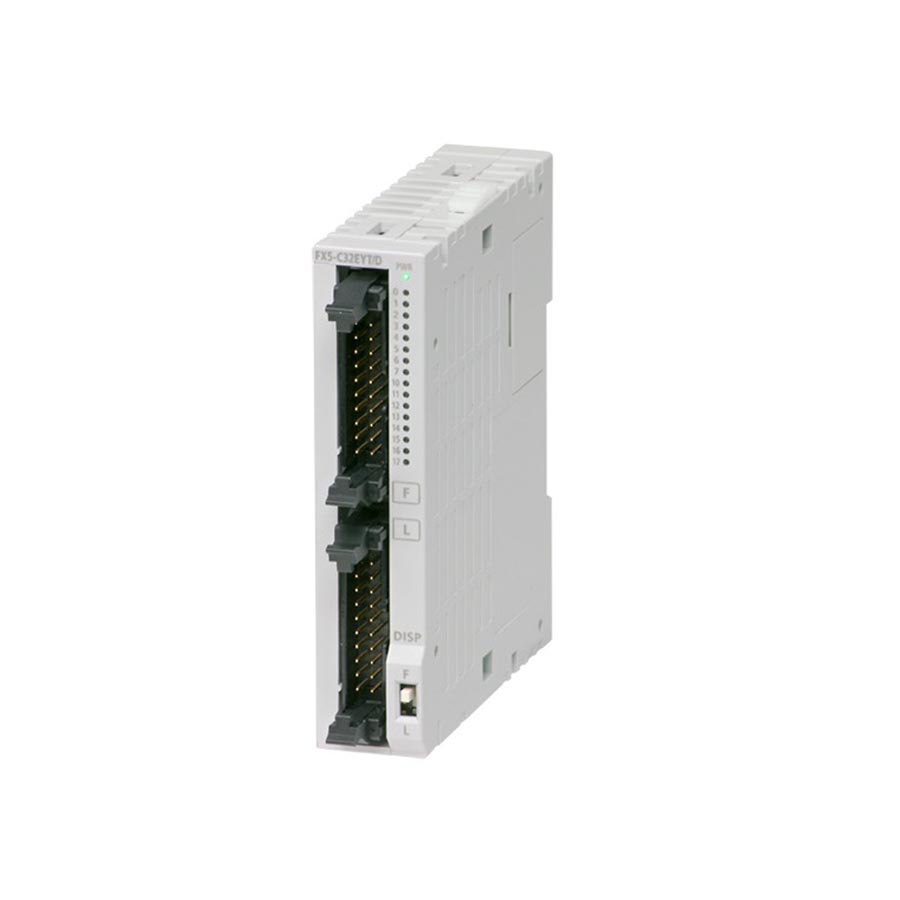

FX5-C32EYT/D | Mitsubishi| Extension Connector Type
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed for seamless integration into advanced industrial automation infrastructures, the Mitsubishi FX5-C32EYT/D stands out as a critical digital output local unit module within the MELSEC iQ-F series. This module provides 32 versatile 24VDC transistor sink outputs, facilitating precise control and reliable switching operations across diverse applications. Furthermore, its MIL ribbon cable connectors simplify wiring, making installation and maintenance more efficient. Ideal for expanding the I/O capabilities of FX5-series CPU modules, this unit ensures robust performance and operational flexibility in demanding environments.
| Parameter | Specification |
|---|---|
| Series | MELSEC iQ-F Series |
| Module Type | Digital Output Local Unit Module |
| Number of Output Points | 32 points |
| Output Type | Transistor / Sink Output |
| Output Connection Type | MIL Ribbon Cable Connectors |
| Rated Output Voltage (External Supply) | 5-30 V DC |
| Max. Load Current | 0.1 A/point (0.8 A max per common terminal) |
| Current Consumption (5 V DC) | 120 mA |
| Current Consumption (24 V DC) | 200 mA |
| Response Time (OFF¡úON) | 0.2 ms or less / 100 mA (at 24 V DC) |
| Response Time (ON¡úOFF) | 0.2 ms or less / 100 mA (at 24 V DC) |
| Output Circuit Insulation | Photo-coupler insulation |
| Output Operation Indication | LED is lit when output is on |
| Mounting Type | DIN Rail Mounting |
| Dimensions (W x H x D) | 20.1 mm x 90 mm x 87 mm |
| Weight | Approx. 0.116 kg |
| Certifications | CE, UL/cUL, UKCA Compliant |
