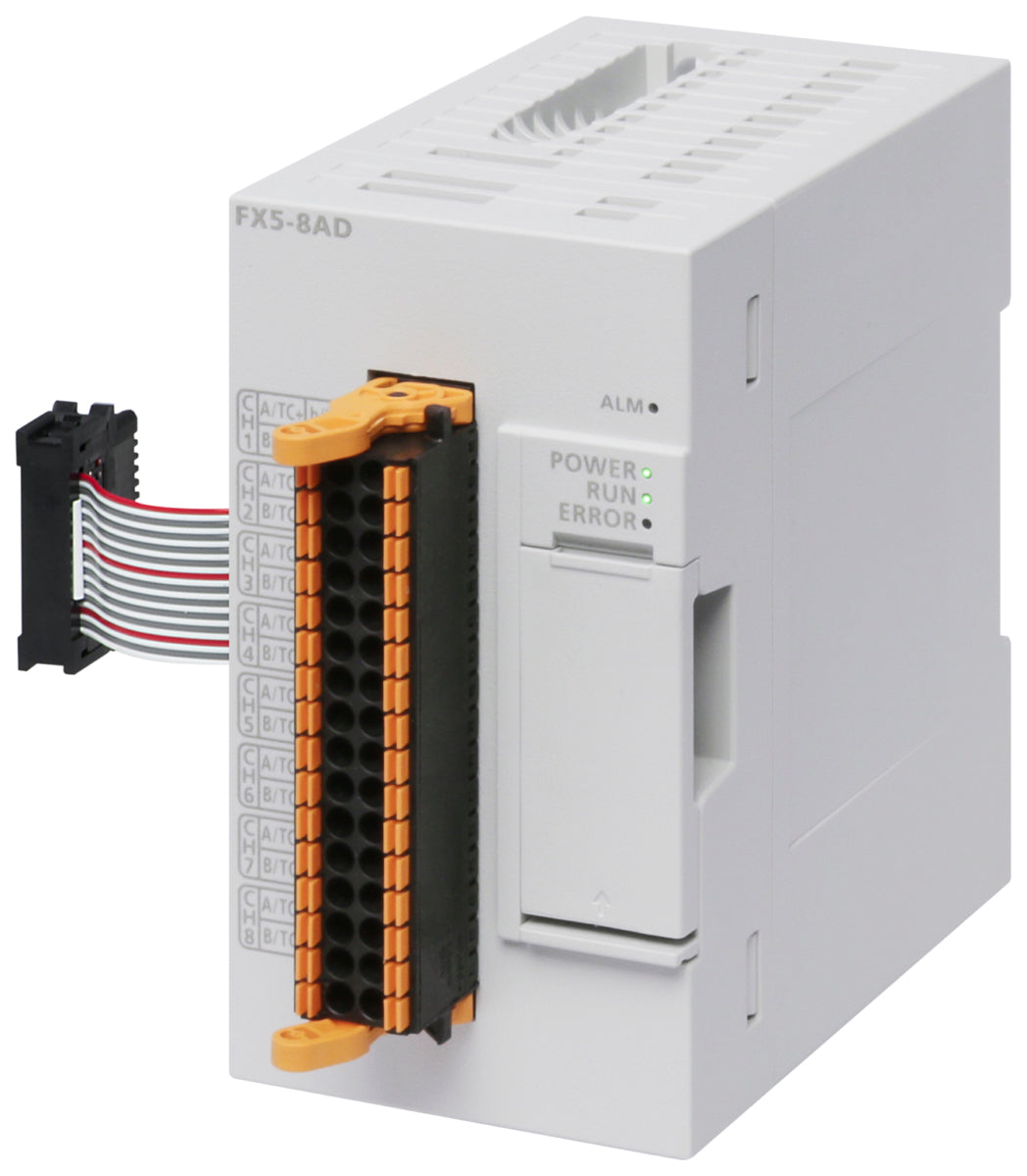

FX5-8AD | Mitsubishi| Multiple Input Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX5-8AD, a robust 8-channel analog input module, delivers 16-bit high-resolution conversion for voltage, current, thermocouple, and RTD signals. Seamlessly compatible with MELSEC iQ-F FX5U/FX5UC PLCs, it's ideal for precise industrial process monitoring and data acquisition applications. This module allows for flexible configuration per channel, further enhancing its adaptability across diverse industrial environments.
| Parameter | Specification |
|---|---|
| Model | FX5-8AD |
| Number of Analog Input Channels | 8 |
| Input Types | Voltage: -10V to +10V, 0-10V, 0-5V, 1-5V DC; Current: -20mA to +20mA, 0-20mA, 4-20mA DC; Supports Thermocouple (K, J, T, B, R, S) and Resistance Temperature Detector (Pt100, Ni100) |
| Resolution | 16-bit A/D Conversion |
| Conversion Speed | Approx. 0.7 ms/channel (in 1-channel mode) |
| Series Compatibility | MELSEC iQ-F FX5U, FX5UC |
| Power Supply | Supplied via Base Unit (Module operation at 24V DC) |
| Operating Temperature | 0¡ãC to 55¡ãC |
| Mounting | DIN Rail |
| Dimensions (W x H x D) | Approx. 50 mm x 90 mm x 83 mm |
| Weight | Approx. 0.3 kg |
| Certifications | CE, UL/cUL, UKCA, ABS, BV, DNV GL, KR, LR, NK, RINA |
