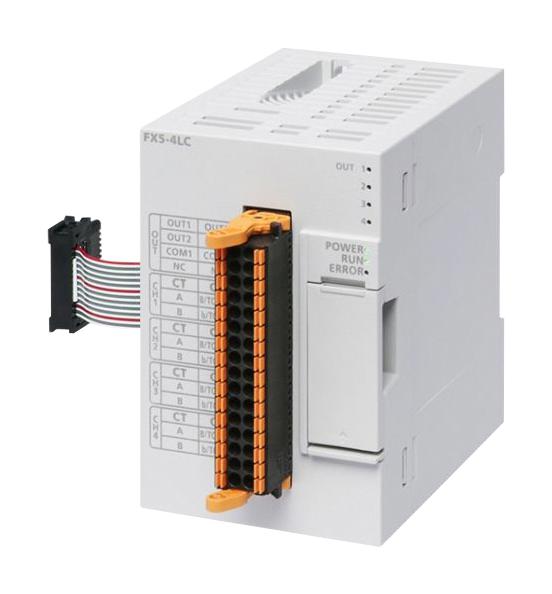

FX5-4LC | Mitsubishi| Analog Input Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX5-4LC stands as a highly intelligent temperature control expansion module, meticulously engineered for the MELSEC iQ-F series PLCs. This essential component provides formidable precision for diverse industrial thermal management applications, notably in environments like ovens, furnaces, or HVAC systems. It integrates four versatile analog input channels, which adeptly accommodate a wide array of sensor types, including thermocouples and RTDs, while further providing four open-collector transistor outputs for direct actuator control. Crucially, each channel is equipped with high-precision cold-junction compensation, ensuring accurate readings across its 250 ms scan cycle for all four channels, thereby bolstering system reliability and responsiveness.
| Parameter | Specification |
|---|---|
| Series | MELSEC iQ-F SERIES |
| Module Type | Temperature Control Module (Thermocouple/RTD Input) |
| Input Channels | 4 Analog Channels |
| Output Channels | 4 Digital (Open Collector Transistor) |
| Applicable Thermocouple Types | K, J, T, S, R, E, B, N, PLII, U, L, W types |
| Applicable RTD Types | Pt100, Pt1000 |
| Micro Voltage Input Range | 0-10 mV / 0-100 mV |
| Rated Output Voltage | DC5 - 24V |
| Power Supply Voltage | 24V DC |
| Scan Time (All Channels) | 250 ms |
| I/O Points Occupied | 8 points |
| Dimensions (W x H x D) | 60 x 90 x 83 mm |
| Weight | 0.3 kg |
| Certifications | UL/cUL, CE, RoHS, UKCA |
