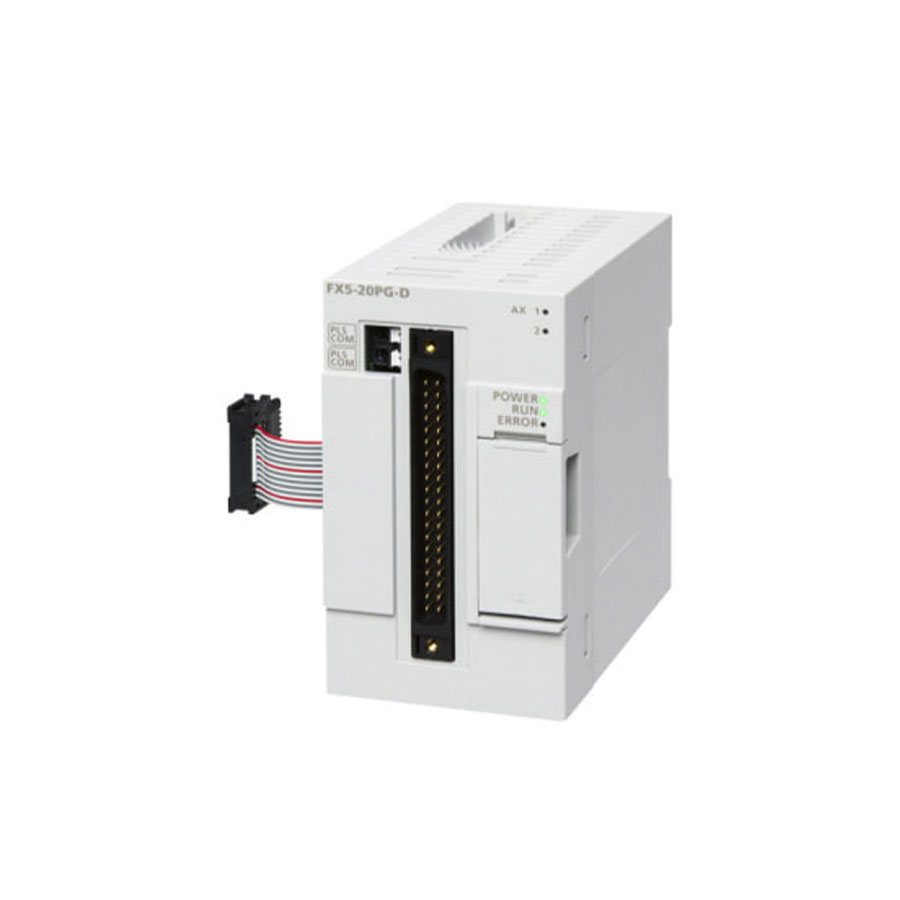

FX5-20PG-P | Mitsubishi| 2-axis pulse train positioning module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Unlock advanced motion capabilities within your MELSEC iQ-F system with the Mitsubishi FX5-20PG-P. This intelligent function module delivers precise, high-speed 2-axis pulse train positioning, ideal for driving servo and stepping motors in demanding automation applications. It integrates seamlessly, while parameter settings are streamlined via GX Works3, ultimately reducing programming effort.
| Parameter | Specification |
|---|---|
| Product Series | MELSEC iQ-F Series |
| Module Type | 2-axis Pulse Train Positioning Module / Intelligent Function Module |
| Number of Control Axes | 2 Axes |
| Pulse Output Form | Transistor Output System |
| Maximum Pulse Output Frequency | 200 kpps |
| Applicable CPU Modules | FX5S/FX5UJ/FX5U/FX5UC (FX5UC requires FX5-CNV-IFC or FX5-C1PS-5V) |
| Engineering Tool | GX Works3 |
| Positioning Data Number | 600 |
| Additional Functions | Interpolation Function, Manual Pulsar Operating Function |
| Connection Terminal | Connector |
| Mass (Weight) | Approx. 0.32 kg |
| Compliance | CE, UL cUL, RoHS, REACH, KC(EMC) |
