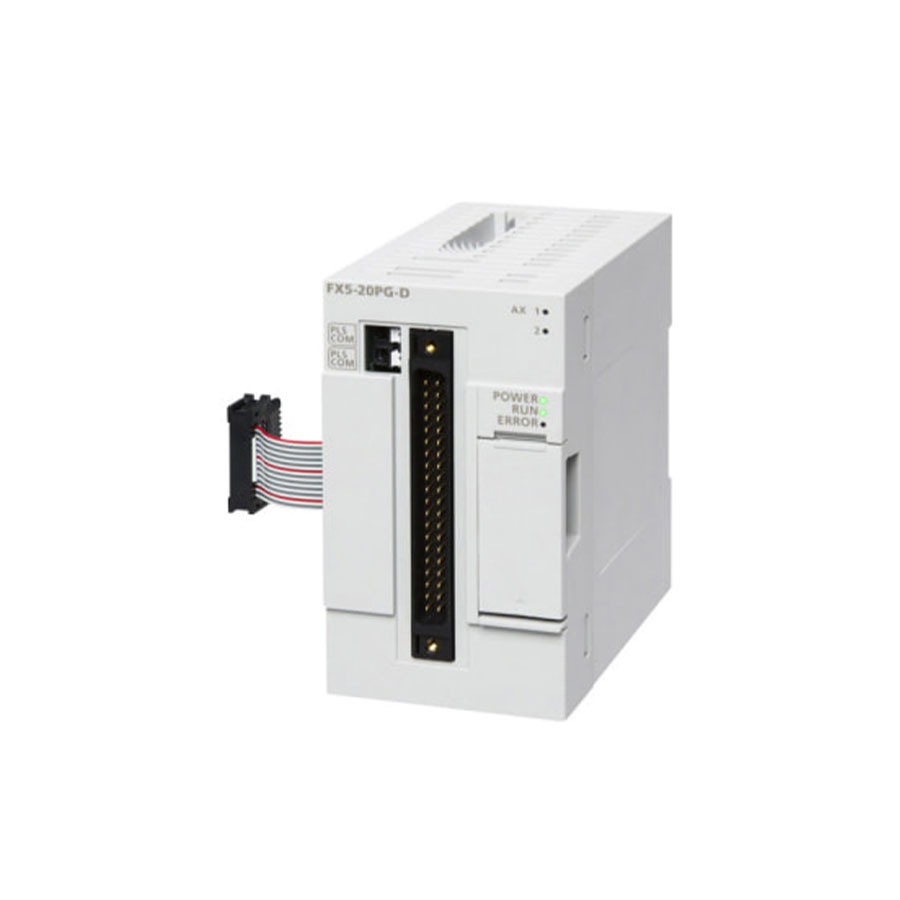

FX5-20PG-D | Mitsubishi|2-axis pulse train positioning module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX5-20PG-D, a MELSEC iQ-F series 2-axis pulse train positioning module, delivers high-speed, high-precision control for servo and stepping motors. It¡¯s ideal for demanding automation like XY tables and packaging equipment.
| Parameter | Specification |
|---|---|
| Product Type | Positioning Module |
| Series | MELSEC iQ-F (FX5) |
| Number of Control Axes | 2 axes |
| Pulse Output Form | Differential Driver Output |
| Max. Pulse Output Frequency | 5 Mpps |
| Mass (Weight) | Approx. 0.2 kg |
| Dielectric Withstand Voltage | 500 V AC for 1 minute |
| Insulation Resistance | 10 M¦¸ or higher by 500 V DC |
| Control System | Pulse Train |
| Control Unit | mm / inch / pulse / degree |
| Number of Positioning Data | 600 points |
| Conformance Standards | UL, cUL, CE (EMC, RoHS), KC (EMC) |
