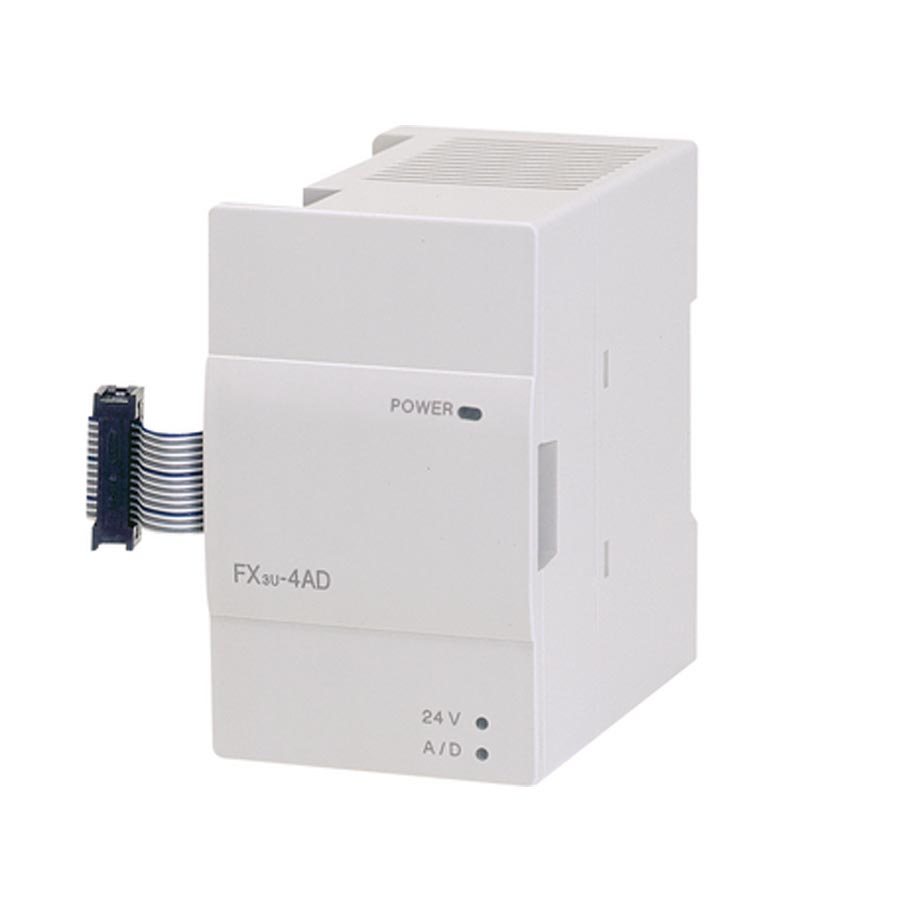

FX3U-4AD | Mitsubishi| Analog Input Block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This exceptional Mitsubishi FX3U-4AD analog input module is an indispensable component for any advanced industrial automation setup, offering unparalleled precision in converting real-world analog signals from sensors into digital data for your PLC system. With its four independently configurable channels, this unit adeptly handles both voltage and current inputs, proving exceptionally versatile across various applications, from complex robotics to intricate automobile manufacturing processes. Furthermore, its robust design ensures stable operation even under challenging industrial conditions, providing the critical data accuracy purchasing managers and control engineers demand.
| Parameter | Specification |
|---|---|
| Number of Input Channels | 4 channels |
| Analog Input Range (Voltage) | -10 V to +10 V DC (Input resistance: 200 k¦¸) |
| Analog Input Range (Current) | -20 mA to +20 mA DC, 4 mA to 20 mA DC (Input resistance: 250 ¦¸) |
| Digital Output Resolution (Voltage) | 15 bits binary + sign 1 bit |
| Digital Output Resolution (Current) | 15 bits binary + sign 1 bit |
| A/D Conversion Time | 500 ¦Ìs x No. of used channels (5 ms with digital filters) |
| Power Supply (Internal) | DC 5 V, 110 mA (supplied from sequencer) |
| Power Supply (External) | DC 24 V ¡À10%, 90 mA |
| Number of Occupied I/O Points | 8 points |
| Operating Temperature Range | 0 ¡ãC to 55 ¡ãC |
| Dimensions (W x H x D) | 55 mm x 90 mm x 87 mm |
| Mass (Weight) | 0.2 Kg |
| Insulation Method | Photo-coupler (Analog input to sequencer); DC/DC converter (Analog input to power supply); No channel isolation |
