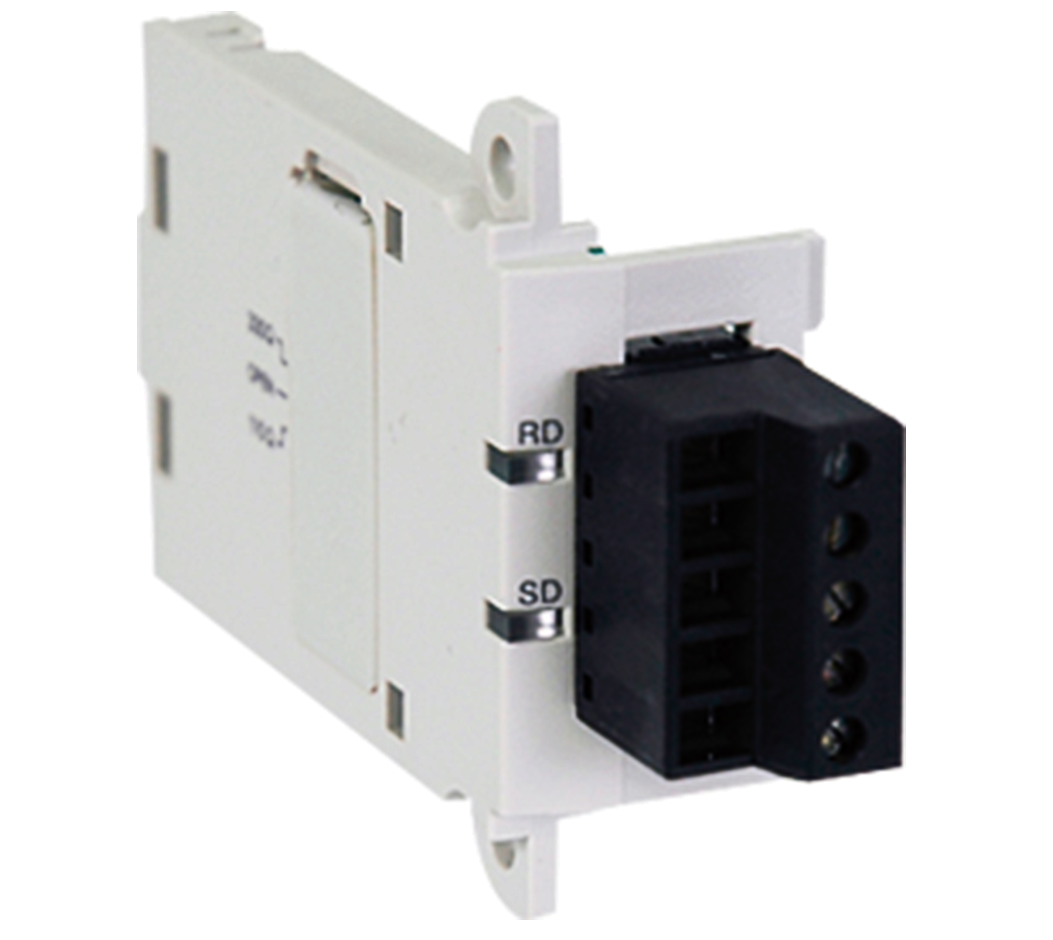

FX3U-485-BD | Mitsubishi| Extension board for RS-485 communication
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Seamlessly integrate your Mitsubishi FX3U series Programmable Logic Controllers with the FX3U-485-BD communication expansion board. This essential module provides reliable RS-485 communication, enabling versatile data exchange across N:N networks, parallel link setups, computer connections, and even direct inverter communication, thereby significantly expanding your automation system's capabilities while maintaining straightforward implementation.
| Parameter | Specification |
|---|---|
| Interface Type | RS-485 / RS-422 |
| Applicable PLC Series | FX3U |
| Power Consumption | 5V DC, 40 mA (from base unit) |
| Communication Method | Half-duplex |
| Transmission Standard | Conforming to RS-485/RS-422 |
| Max. Transmission Distance | 50m |
| Baud Rate (Standard) | 300 - 19200 bps |
| Baud Rate (N:N Network) | 384000 bps |
| Baud Rate (Parallel Link) | 115200 bps |
| Insulation | Not insulated (between communication line and CPU) |
| Dimensions (W x H x D) | 19.6 x 46.1 x 69 mm |
| Weight | 0.02 kg |
| Connector | European Terminal Block |
| Mounting | Expansion Slot (Clips into base unit) |
