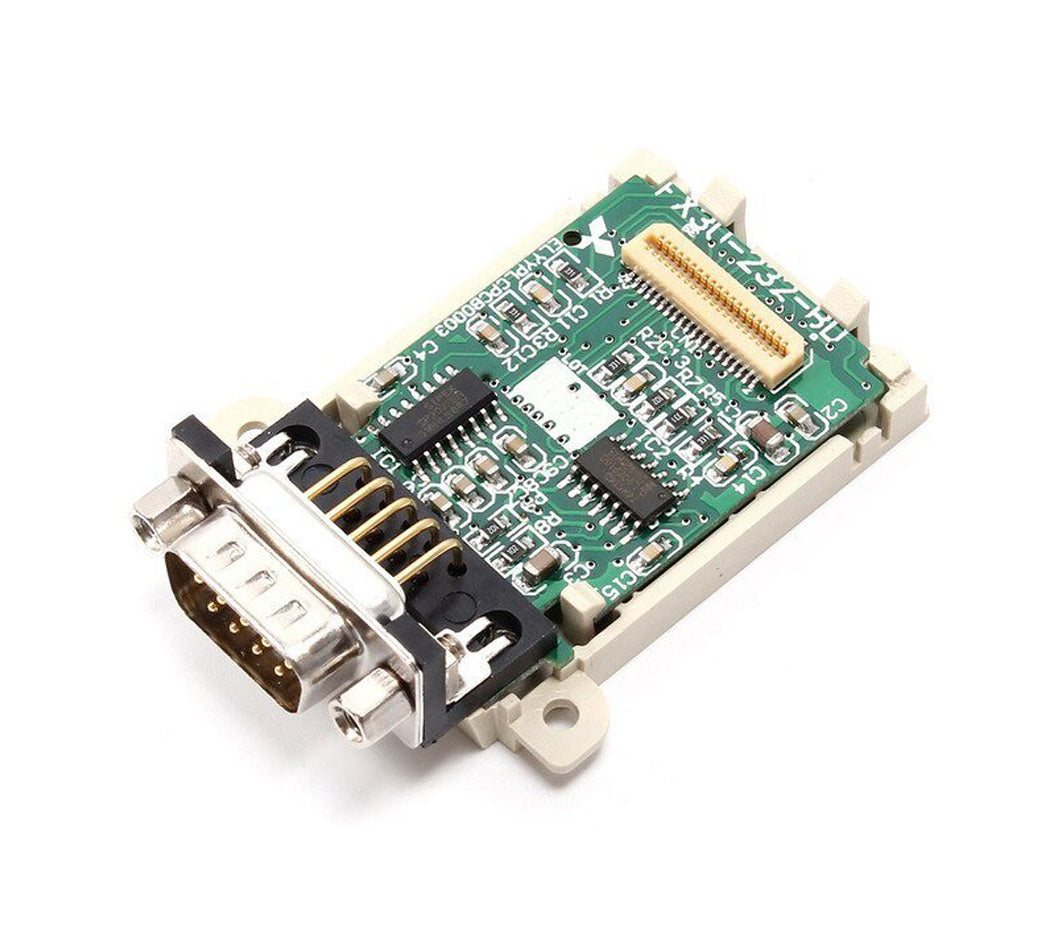

FX3U-232-BD | Mitsubishi| RS-232C Communication Expansion Board
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered to elevate the capabilities of your Mitsubishi FX3U series PLC, the FX3U-232-BD communication board offers robust RS-232C connectivity. This compact, full-duplex module is truly essential for integrating your automation system with a diverse array of external devices, ranging from PCs and printers to barcode readers and specialized measuring instruments, thereby ensuring enhanced data exchange and monitoring. Its straightforward installation, being a direct mount to the FX3U central unit, streamlines setup, while further supporting critical programming transfer and remote maintenance functionalities for optimal operational efficiency.
| Parameter | Specification |
|---|---|
| Product Type | RS-232C Communication Expansion Board |
| Series | MELSEC-F Series, FX3U Type |
| Interface | RS-232C |
| Connection Method | 9-pin D-Sub Type (male) |
| Transmission Standard | In conformance to RS-232C |
| Max. Transmission Distance | 15 m (49 ft) |
| Communication Method | Full-duplex |
| Communication Formats | Non-Protocol, Computer Link, Programming Communication |
| Baud Rate (Non-Protocol/Link) | 300 to 19200 bps |
| Baud Rate (Programming) | 9600 to 115200 bps |
| Power Supply | 5V DC, 20 mA (Internal from PLC main unit) |
| Isolation Method | Non-isolated (Between communication line and CPU) |
| Dimensions (WxHxD) | 19.3 mm x 46.1 mm x 62.7 mm |
| Weight | Approx. 0.02 kg (20 g) |
| Indications (LED) | RD, SD |
| Applicable PLC | FX3U, FX3UC-32MT-LT(-2) |
