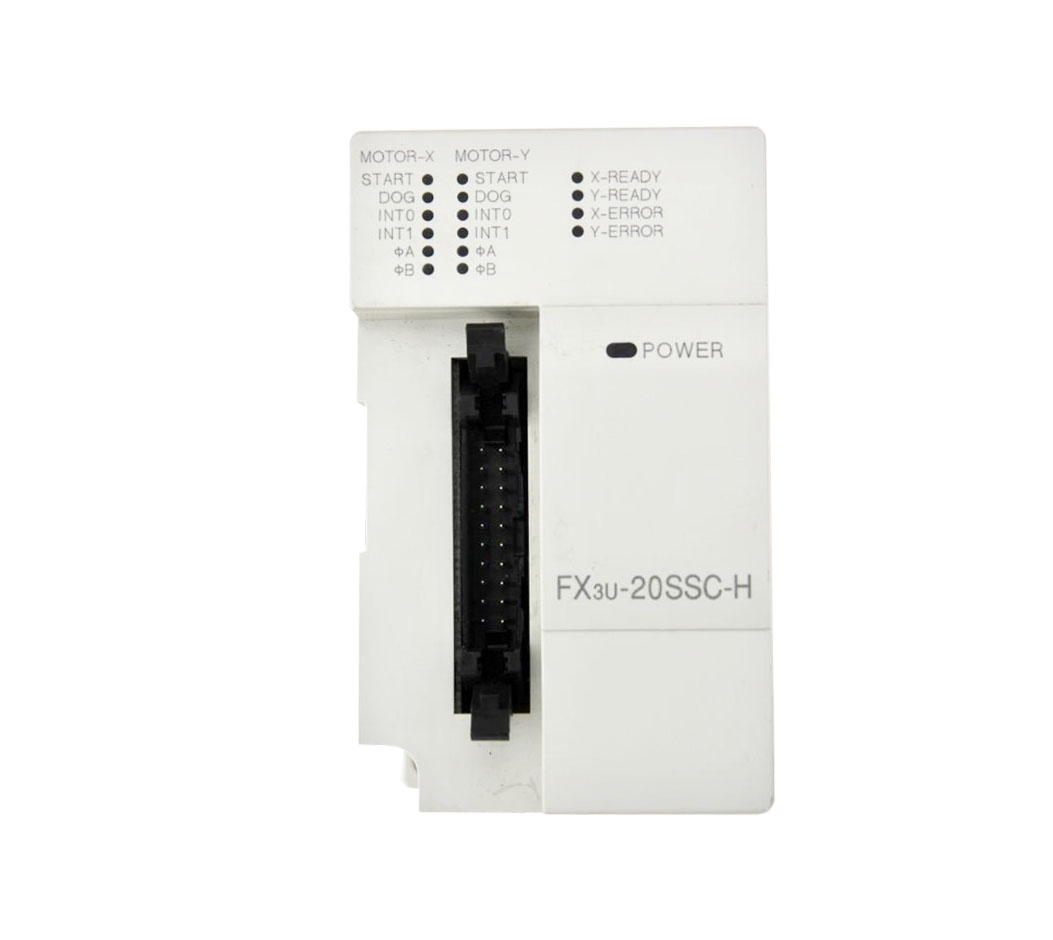

FX3U-20SSC-H | Mitsubishi| Positioning block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for sophisticated motion control, the Mitsubishi FX3U-20SSC-H emerges as a high-performance 2-axis positioning module, specifically designed to seamlessly integrate with MELSEC FX3U series PLCs. This unit significantly enhances automation capabilities, providing precise control over servo motors via the high-speed SSCNET III optical communication network. Furthermore, its advanced features, including linear and circular interpolation, make it an indispensable asset for complex multi-axis applications where accuracy and dynamic response are paramount.
| Parameter | Specification |
|---|---|
| Product Type | 2-Axis Positioning Module |
| Series | MELSEC-F FX3U |
| Number of Control Axes | 2 axes |
| Communication Interface | SSCNET III |
| Compatible Servo Amplifiers | MELSERVO MR-J3-¡õB, MR-J4-¡õB series |
| Interpolation Functions | Linear, Circular |
| Max. Positioning Points | Up to 300 points (table operation) |
| Programming Software | FX Configurator-FP, GX Developer/IEC Developer |
| Power Consumption | 25W (typical, system dependent) |
| Dimensions (WxHxD) | 55 x 90 x 87 mm |
| Weight | 0.26 kg |
| Certifications | CE, UL/cUL, UKCA, RoHS Compliant |
