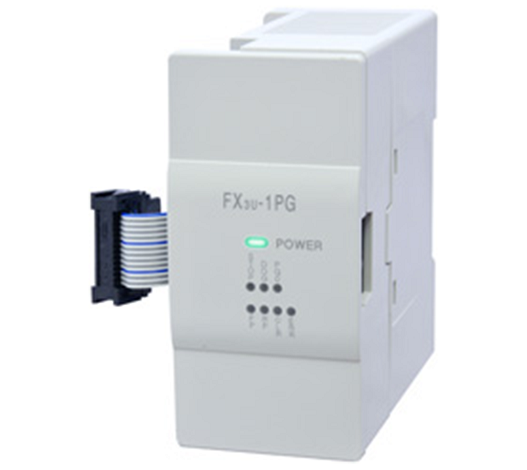

FX3U-1PG | Mitsubishi| Pulse Output Block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for precise motion control, the Mitsubishi FX3U-1PG emerges as a potent 1-axis pulse output block. It effortlessly integrates with FX3U and FX3UC PLCs, furnishing robust control for a single servo or stepping motor. Furthermore, it delivers pulse trains up to 200 kHz for highly dynamic applications.
| Parameter | Specification |
|---|---|
| Number of Control Axes | 1-axis |
| Maximum Output Frequency | 200 kHz |
| Applicable PLC Series | FX3U/FX3UC (Ver. 2.20 or later), FX5U/FX5UC |
| Occupied I/O Points | 8 points |
| Mass (Weight) | Approx. 0.2 kg |
| Dimensions (W x H x D) | 43 x 90 x 87 mm |
| Output Type | Transistor |
| Positioning Method | Increment, Absolute |
| Inner Control Power Supply | 5V DC, 150 mA (from PLC extension cable) |
| Conformity | CE, UL/cUL, UKCA Compliant |
