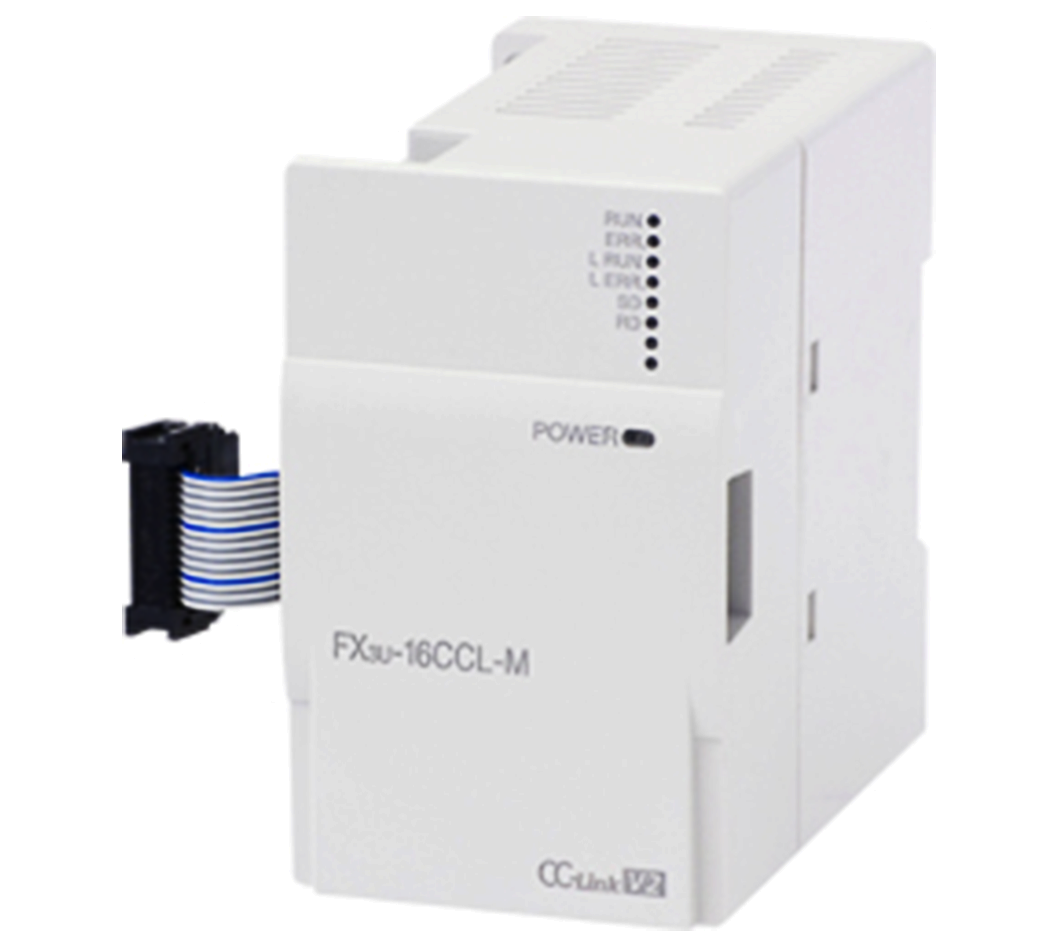

FX3U-16CCL-M | Mitsubishi| CC-Link system master block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX3U-16CCL-M is a remarkably versatile CC-Link master module, specifically engineered to dramatically expand the communication capabilities of your FX3U series PLCs. This robust unit ensures seamless, high-speed, and expanded cyclic data exchange, effortlessly integrating diverse remote I/O and intelligent device stations into your automation architecture. Furthermore, its support for both Ver. 2.00 and Ver. 1.10 of the CC-Link protocol offers exceptional flexibility and compatibility across a wide range of industrial applications, making it an indispensable component for modern control systems.
| Parameter | Specification |
|---|---|
| Station Type | Master Station |
| CC-Link Version | Ver. 2.00 (Ver. 1.10 also supported) |
| Max. Number of Stations | 16 stations |
| Occupied I/O Points | 8 points |
| Transfer Speed | 10 Mbps (selectable from 156 kbps to 10 Mbps) |
| External Power Supply | DC 24V (+20% -15% ripple within 5%) |
| Current Consumption (24VDC) | 240 mA |
| Operating Ambient Temperature | 0 to 55 ¡ãC |
| Operating Relative Humidity | 5 to 95% RH (non-condensing) |
| Communication Method | Broadcast Polling Method |
| Transmission Path Format | Bus (RS-485) |
| Error Control Method | CRC (X^16 + X^12 + X^5 + 1) |
| Weight | 0.3 kg |
| Dimensions (W x H x D) | 55 x 90 x 87 mm |
| Compatible PLCs | FX3G, FX3GC, FX3U, FX3UC, FX5U, FX5UC Series |
