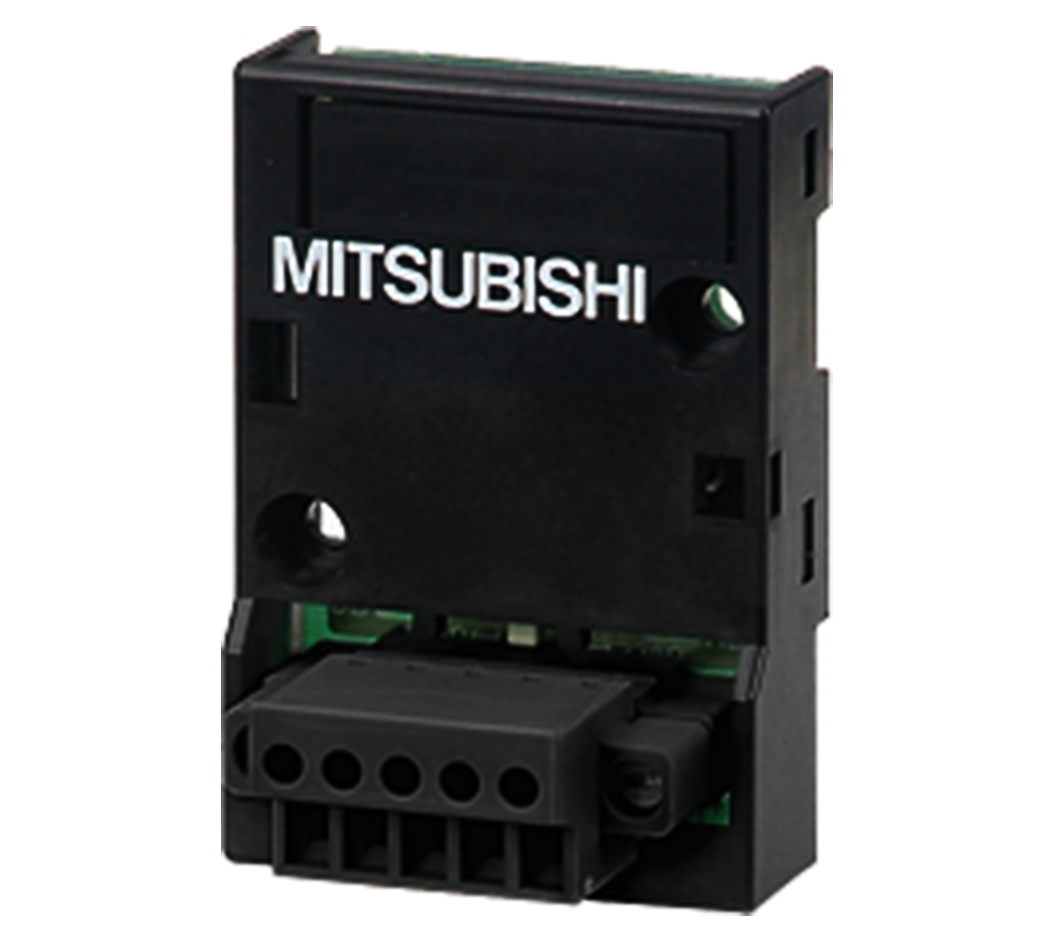

FX3G-1DA-BD | Mitsubishi| MELSEC FX1N
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Unlock sophisticated analog control capabilities for your Mitsubishi FX3G series PLC systems with the FX3G-1DA-BD, a dedicated 1-channel analog output expansion board. This compact, yet powerful, module seamlessly integrates to provide highly accurate voltage and current outputs, enabling precise command over critical processes. Its rapid D/A conversion time ensures real-time responsiveness, while robust compliance certifications underscore its reliability in demanding industrial environments. Purchasing managers will appreciate its straightforward integration and the enhanced control flexibility it brings to existing FX3G installations, whereas control engineers will value the precise resolution and accuracy for fine-tuning automation tasks.
| Parameter | Specification |
|---|---|
| Product Type | Analog Output Expansion Board |
| Output Channels | 1 Channel |
| Output Voltage Range | 0 to +10 V DC |
| Output Current Range | 4 to 20 mA DC |
| Voltage Output Resolution | 12 bits (2.5 mV) |
| Current Output Resolution | 11 bits (8 ¦ÌA) |
| Voltage Output Accuracy (25¡ãC¡À5¡ãC) | ¡À0.5% (¡À50 mV) for 10V full scale |
| Current Output Accuracy (25¡ãC¡À5¡ãC) | ¡À0.5% (¡À80 ¦ÌA) for 16mA full scale |
| D/A Conversion Time | 60 ¦Ìs |
| Isolation Method | Non-isolation (between analog output area and PLC) |
| Applicable PLC Series | FX3S, FX3G (V1.10 or later) |
| Dimensions (W x H x D) | 35 x 51.2 x 12 mm |
| Weight | 0.02 kg |
| Operating Ambient Temperature | 0¡ãC to 55¡ãC |
| Compliance | CE, UKCA Compliant |
