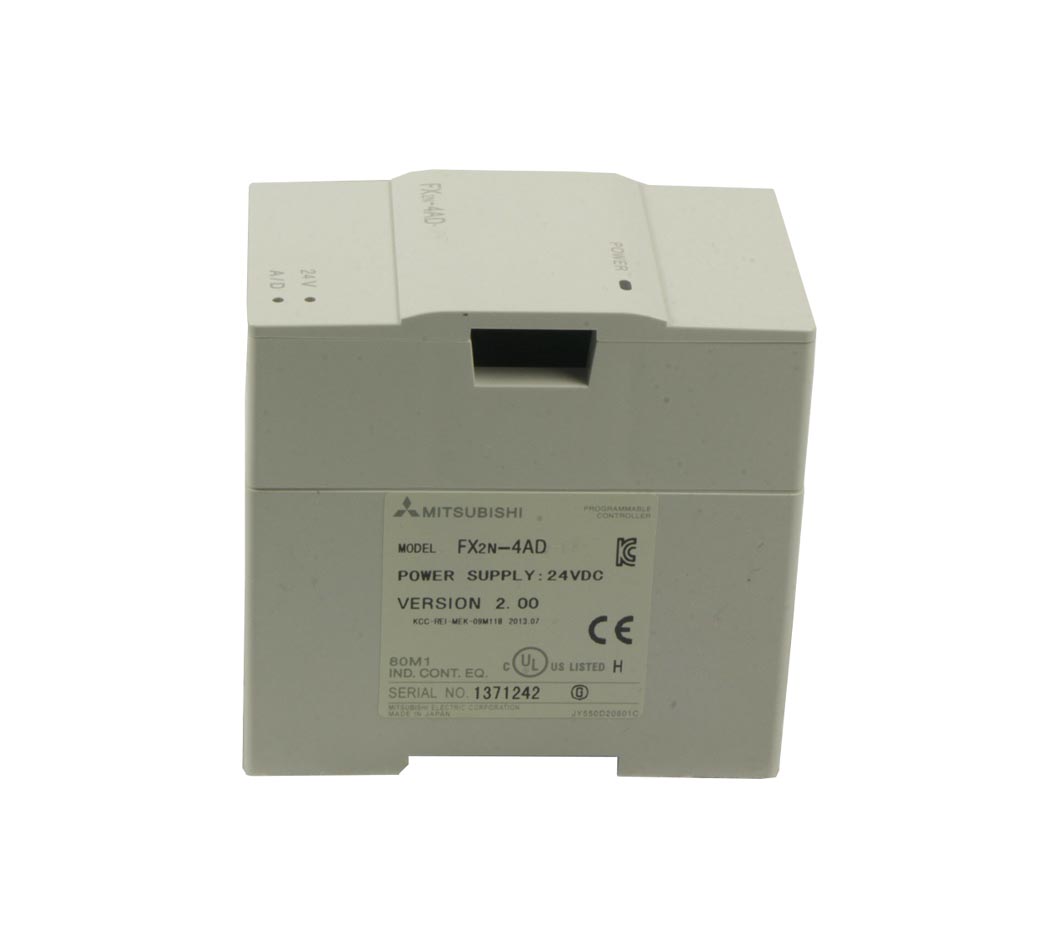

FX2N-4AD | Mitsubishi| Analog Input Modules
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for unwavering performance within demanding industrial automation environments, the Mitsubishi FX2N-4AD stands as a highly versatile 4-channel analog input special function block. This module adeptly translates continuous analog signals¡ªranging from voltage to current inputs¡ªinto actionable digital values for your MELSEC-F series PLC, proving indispensable for meticulous process monitoring and control across diverse applications. Its high-resolution conversion ensures exceptional data accuracy, a critical factor for sensitive industrial operations, while offering flexible input ranges to accommodate a broad spectrum of sensors and instrumentation.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product Type | Analog Input Special Function Block |
| Number of Input Channels | 4 channels |
| Analog Input Range (Voltage) | -10 V to +10 V DC (Input Resistance 200 k¦¸) |
| Analog Input Range (Current) | 4 to 20 mA DC, -20 to +20 mA DC (Input Resistance 250 ¦¸) |
| Resolution | 12-bit (Voltage: 5 mV, Current: 20 ¦ÌA) |
| A/D Conversion Time | 15 ms/channel (Normal), 6 ms/channel (High-speed) |
| I/O Points Occupied | 8 points |
| Internal Power Supply | 5 V DC / 30 mA (from PLC main unit) |
| External Power Supply | 24 V DC ¡À10% / 55 mA |
| Weight | Approx. 0.3 kg (0.66 - 0.69 lbs) |
| Compatible PLC Series | MELSEC-F series (FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC) |
| Dielectric Withstand Voltage | 500 V AC for 1 minute |
| Isolation Method | Photo-coupler between analog and digital circuits; DC/DC converter for power; no channel-to-channel isolation |
