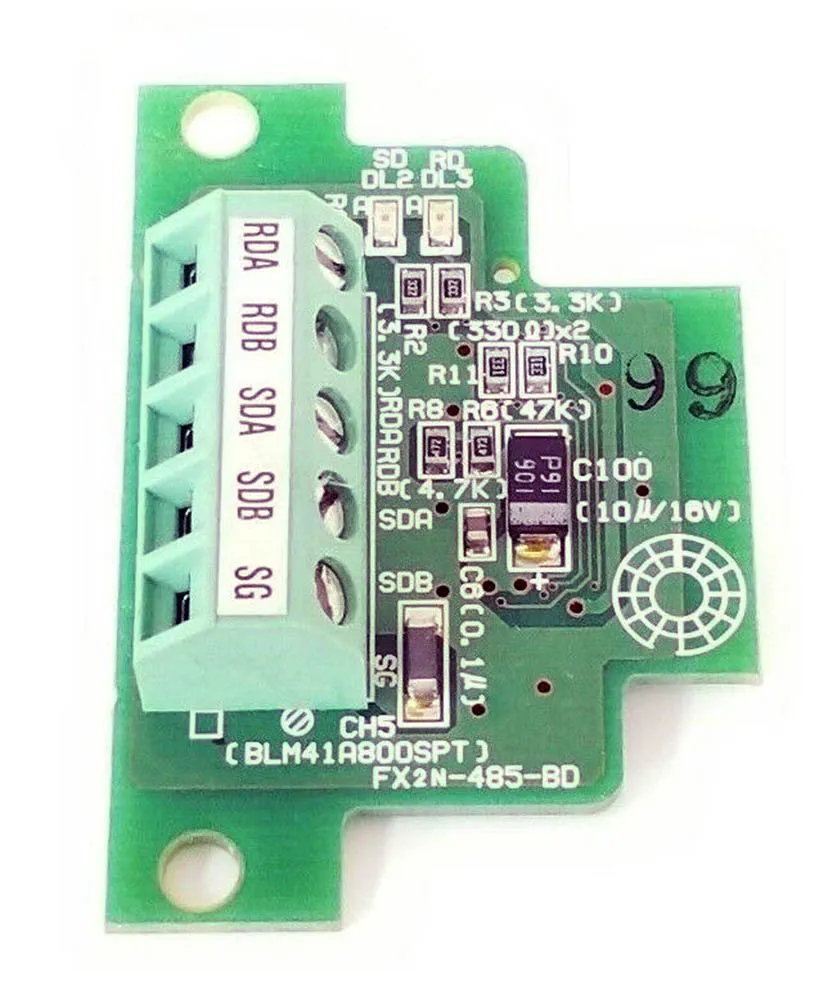

FX2N-485-BD | Mitsubishi| RS-485 Communication Expansion Board
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Unlock advanced connectivity for your industrial automation systems with the Mitsubishi FX2N-485-BD communication board. This essential add-on effortlessly connects to your FX2N Series PLC, extending its capabilities for reliable data exchange across RS-485 and RS-422 networks. It¡¯s engineered to support a variety of communication protocols, ensuring flexible integration with an array of peripheral equipment, thereby enhancing system scalability and operational efficiency. Furthermore, its robust design makes it an ideal choice for demanding industrial environments, providing the necessary backbone for sophisticated control applications.
| Parameter | Specification |
|---|---|
| Transmission Standard | Conforming to RS-485 and RS-422 |
| Applicable PLC Series | Mitsubishi FX2N Series |
| Communication Methods | N:N Network, Parallel Link, Computer Link, No Protocol, Inverter Communication |
| Communication Mode | Half-duplex (FX2N < Ver. 2.00); Full-duplex (FX2N ≥ Ver. 2.00) |
| Supported Baud Rate | 300 to 19,200 bps (Dedicated Protocol, No Protocol); 19,200 bps (Parallel Link); 38,400 bps (N:N Network) |
| Maximum Transmission Distance | 50 m |
| Power Supply | 5V DC, 60 mA (supplied from PLC) |
| Isolation | None |
| LED Indicators | SD (Send Data), RD (Receive Data) |
| Terminal Resistors | 330Ω x 2, 110Ω x 1 |
| Connection Method | European Type Terminal Block |
| Max. Number of Stations (N:N Network) | 8 stations (up to 16 including A series PLC with dedicated protocol) |
