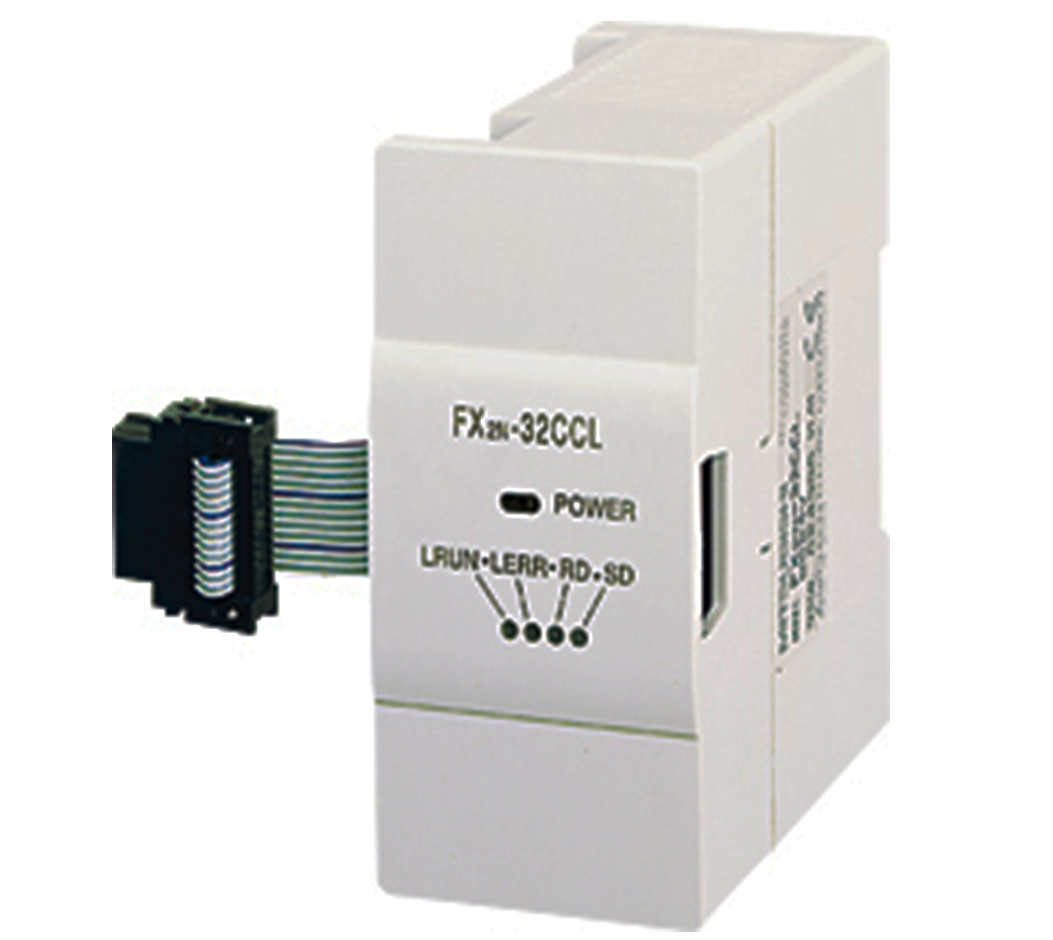

FX2N-32CCL | Mitsubishi| CC-Link system interface block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for seamless integration into advanced automation systems, the Mitsubishi FX2N-32CCL acts as an indispensable CC-Link interface block, extending the capabilities of FX Series PLCs. This robust module capably serves as a remote device station, providing 32 remote input and 32 remote output points, thus enabling efficient, real-time data exchange across your CC-Link network for distributed control applications. Its design, furthermore, ensures flexible communication in even the most demanding industrial environments.
| Parameter | Specification |
|---|---|
| Product Type | CC-Link Interface Block |
| Compatible PLC Series | FX0N, FX1N, FX2N, FX2NC, FX3G, FX3GC, FX3U, FX3UC Series |
| Network Interface | CC-Link Ver. 1.00 Compliant |
| Station Type | Remote Device Station (supports Master/Local functionality) |
| Remote I/O Points | 32 Input, 32 Output per station |
| Occupied PLC I/O Points | 8 points |
| Network Topology | Bus (RS-485) |
| Transmission Speed | Selectable (156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps) |
| Max. Transmission Distance | 1,200 m (at 156 kbps) to 100 m (at 10 Mbps) |
| Control Power Supply | 5 VDC, 130 mA (supplied from PLC) |
| Drive Power Supply | 24 VDC +/-10%, 50 mA (from external terminal) |
| Dimensions (W x H x D) | 43 x 90 x 87 mm |
| Weight | Approx. 0.2 kg |
| Mounting Method | DIN Rail / Direct Mount (M4 screws) |
| Operating Temperature | 0 to 55 ¡ãC |
| Operating Humidity | 35 to 85% RH, non-condensing |
| Insulation Method | Photocoupler (Network bus & internal power) |
