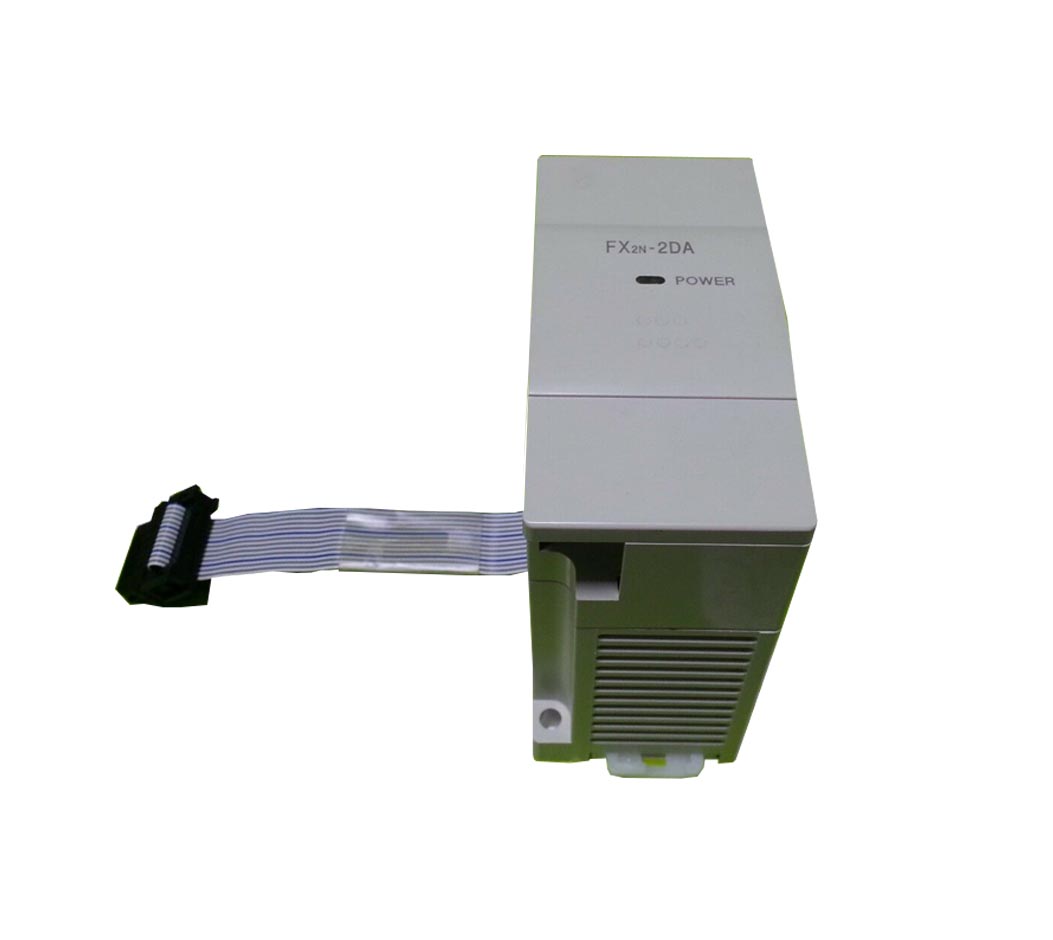

FX2N-2DA | Mitsubishi| Digital to Analog Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for robust performance, the Mitsubishi FX2N-2DA serves as an indispensable analog output block, seamlessly converting 12-bit digital values from your programmable controller into precise analog voltage or current signals. This module, a vital component of the MELSEC-F series, facilitates highly accurate control in diverse industrial environments, ranging from process automation to motion control systems. With its dual output channels, offering both voltage and current options, it provides remarkable flexibility, further enhancing its adaptability across various applications. Crucially, the FX2N-2DA ensures reliable signal integrity through photo-coupler isolation between analog and digital circuits.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product Line | FX Series |
| Module Type | Analog Output Block |
| Number of Analog Outputs | 2 Channels |
| Digital-to-Analog Conversion | 12-bit |
| Output Ranges (Voltage) | 0-10V DC, 0-5V DC |
| Output Ranges (Current) | 4-20mA |
| Analog Circuit Power Supply | 24V DC ¡À10% 85mA (Internal power from main unit) |
| Digital Circuit Power Supply | 5V DC 30mA (Internal power from main unit) |
| Resolution (Voltage Output) | 2.5mV (for 0-10V) / 1.25mV (for 0-5V) |
| Resolution (Current Output) | 4¦ÌA (for 4-20mA) |
| Integrated Accuracy (Voltage) | ¡À0.1V (or ¡À1% full scale 0-10V) |
| Integrated Accuracy (Current) | ¡À0.16mA (or ¡À1% full scale 4-20mA) |
| Processing Time | 4ms/1 channel (synchronized to sequence program) |
| Isolation | Photo-coupler isolation (between analog & digital circuits) |
| Occupied I/O Points | 8 points (can be inputs or outputs) |
| Dielectric Withstand Voltage | 500V AC for 1 minute (between analog output terminals and case) |
| Weight | 0.17 kg (0.38 lbs) |
