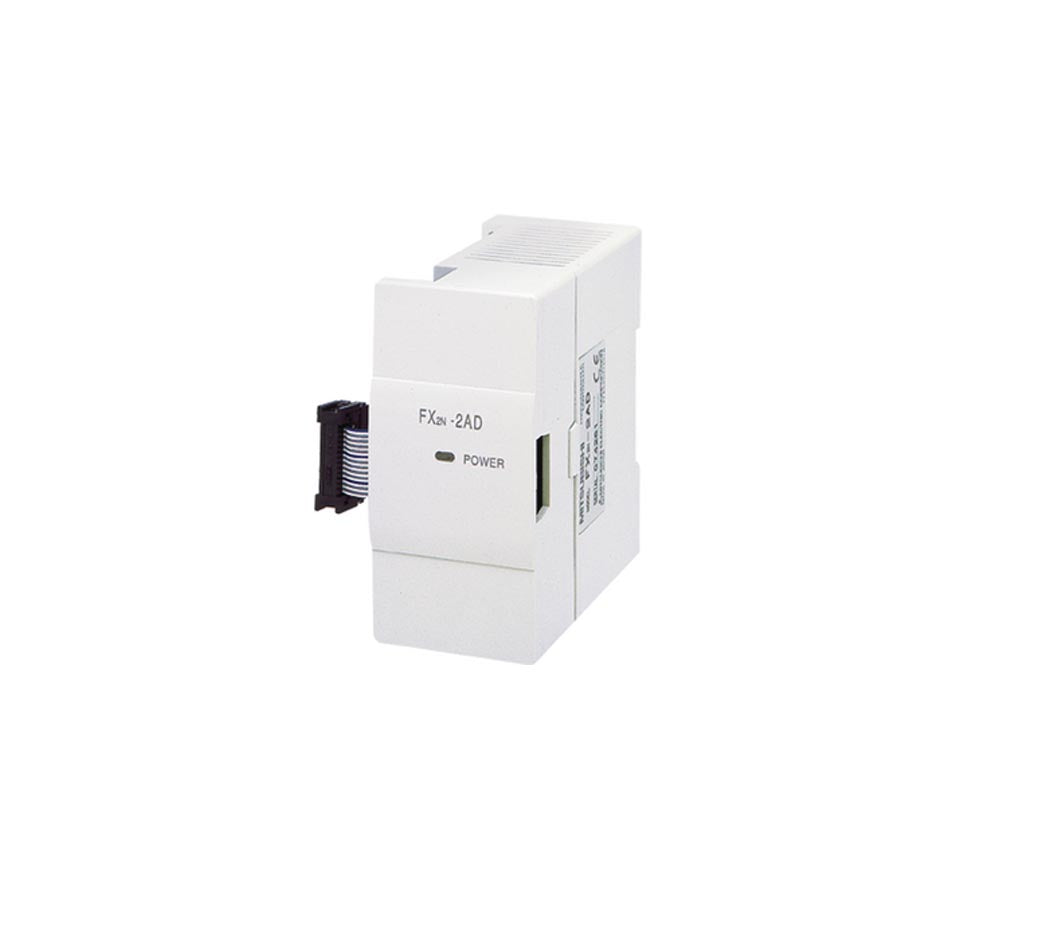

FX2N-2AD | Mitsubishi| Analog to Digital Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed for seamless integration within Mitsubishi's FX Series PLCs, the FX2N-2AD analog input module stands out, offering robust and precise two-channel analog-to-digital conversion. This particular module efficiently handles both voltage and current inputs, translating real-world analog signals into critical 12-bit digital data, which is indispensable for advanced control and monitoring tasks across various industrial automation environments. Its versatility, coupled with reliable performance, makes it a go-to choice for upgrading or implementing sophisticated measurement capabilities.
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| Number of Input Channels | 2 Channels |
| Analog Voltage Input Range | 0-10V DC, 0-5V DC |
| Analog Current Input Range | 4-20mA DC |
| Resolution | 12-bit (binary) |
| A/D Conversion Time | 2.5 ms/1 Channel |
| Occupied I/O Points | 8 points (from PLC I/O) |
| Internal Power Supply (from PLC) | 5V DC, 20mA |
| External Power Supply | 24V DC ¡À10%, 50mA |
| Mounting Type | DIN Rail Mount |
| Dimensions (W x H x D) | 43 mm x 90 mm x 87 mm |
| Isolation Method | Photocoupler isolation (analog-digital), DC/DC converter isolation (power), No isolation between channels |
| Compatible PLCs | FX0N, FX1N, FX2N, FX2NC, FX3G, FX3GC, FX3U, FX3UC Series |
