FX2N-1PG-E | Mitsubishi| Pulse output block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget

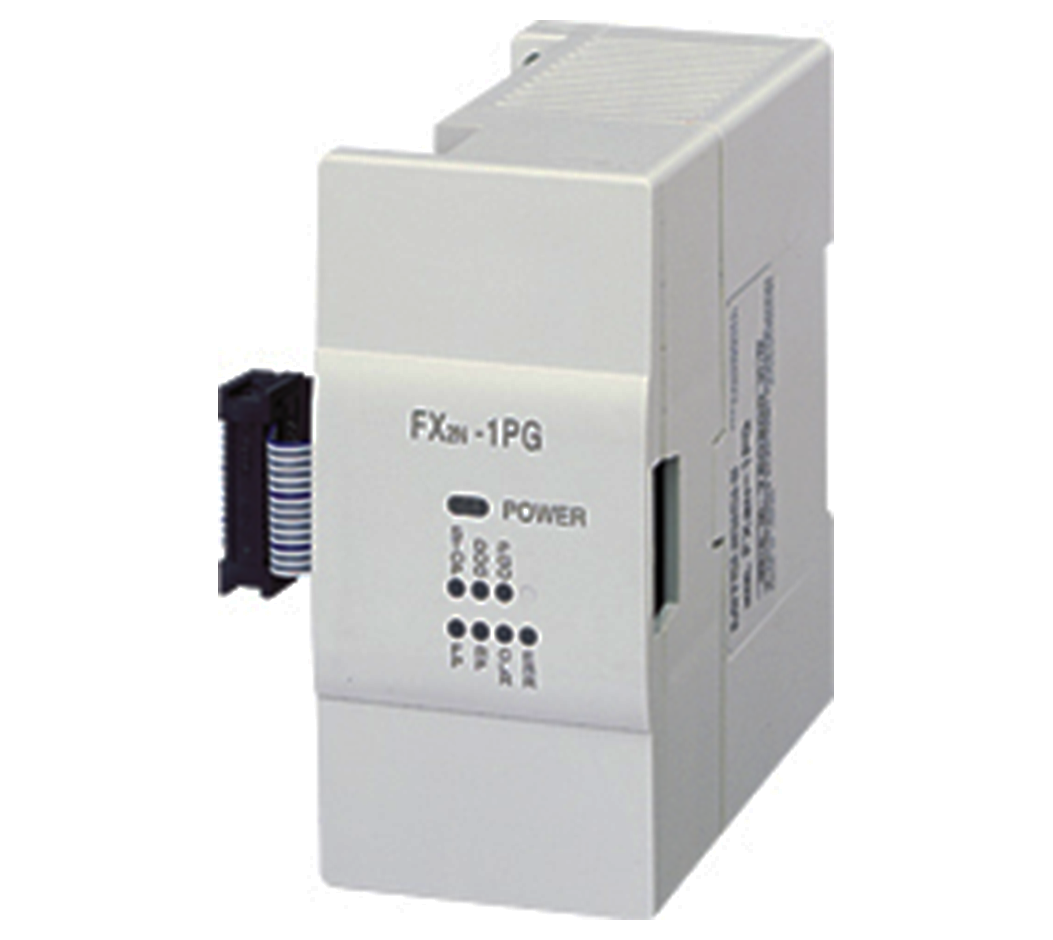

Engineered for exacting single-axis positioning control, the Mitsubishi FX2N-1PG-E is a sophisticated pulse generator unit that seamlessly integrates with Mitsubishi's FX2N, FX2NC, FX3U, and FX3UC series programmable logic controllers. It delivers high-speed pulse outputs, essential for accurately driving both servo and stepper motors in diverse automation environments. This module stands out with its versatile output modes, including pulse/direction and A/B phase quadrature, further complemented by user-programmable acceleration and deceleration profiles for smooth, precise motion, truly enhancing system performance.
| Parameter | Specification |
|---|---|
| Applicable PLCs | FX2N, FX2NC, FX3U, FX3UC Series |
| Number of Control Axes | 1 Axis |
| Max. Output Frequency | 100 kHz (100,000 pulses/s) |
| Pulse Output Form | Forward/Reverse Pulse (FP/RP) or Pulse/Direction (PLS/DIR) |
| Output Type | Transistor (Sink Type) |
| Power Supply (from Main Unit) | 5 VDC / 55 mA |
| Power Consumption | 5 W |
| Weight | 0.3 kg |
| Dimensions (W x H x D) | 43 x 90 x 87 mm |
| Related I/O Points | 8 Points |
| Control Input Signals | STOP, DOG, PG0 |
| Input Signal Voltage (STOP, DOG) | 24 VDC / 40 mA |
| Acceleration/Deceleration | Trapezoidal, S-pattern |
| Certifications | UL, cUL, CE |
