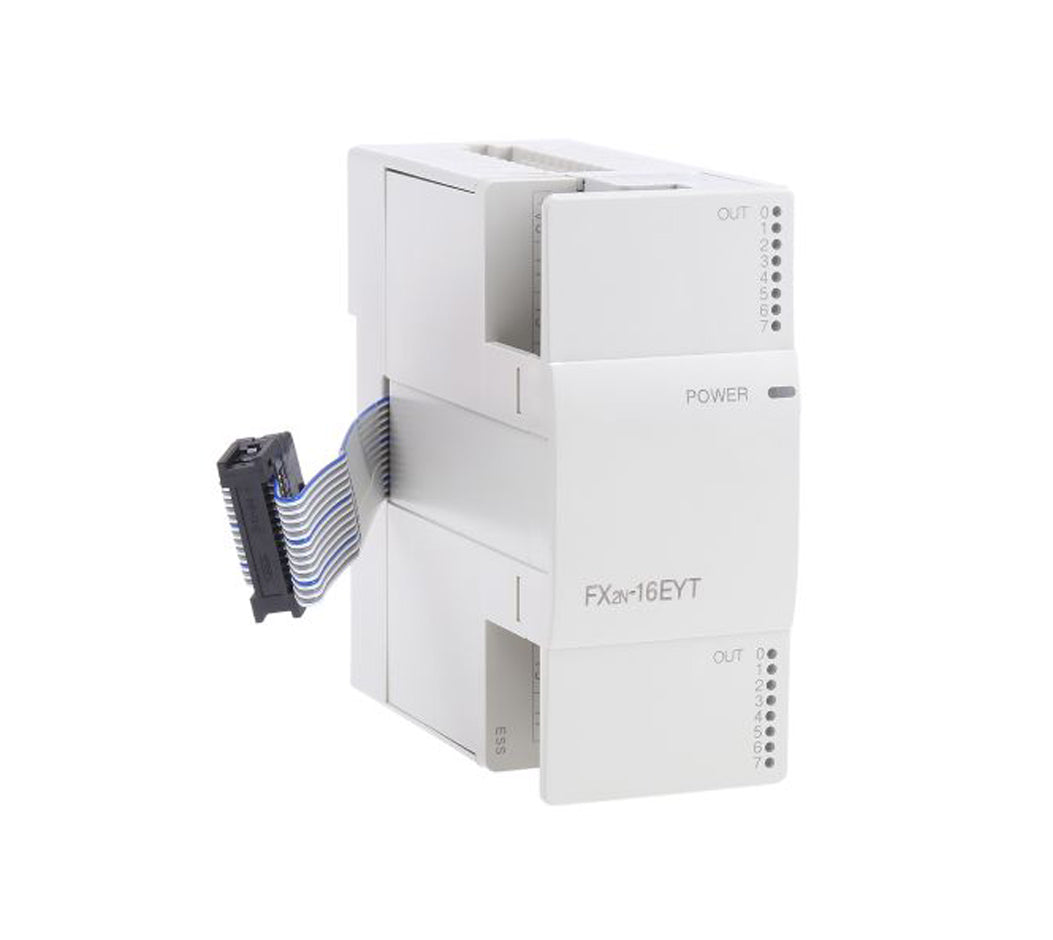

FX2N-16EYT-ESS/UL | Mitsubishi| Extension Blocks FX2N
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX2N-16EYT-ESS/UL stands out as a highly reliable 16-point transistor output module, meticulously engineered for demanding industrial automation and machinery control applications. This integral component of the MELSEC-F series ensures exceptional performance, effortlessly extending the capabilities of various FX-series PLCs. Its robust design, coupled with precise output control, makes it an ideal choice for purchasing managers and control engineers seeking to enhance their systems' efficiency and operational stability.
| Parameter | Specification |
|---|---|
| Series | MELSEC-F Series (FX2N Type) |
| Output Points | 16 points |
| Output Type | Transistor (Source Output) |
| Output Connection Type | Vertical Terminal Block (M3 screws) |
| External Power Supply | 5 V to 30 V DC |
| Max. Load (Resistance) | 0.5 A/1 point; 0.8 A/4 points common; 1.6 A/8 points common |
| Open Circuit Leakage Current | 0.1 mA/30 V DC |
| ON Voltage | 1.5 V or less |
| Response Time (OFF¡úON) | 0.2 ms or less for 200 mA (at 24 V DC) |
| Response Time (ON¡úOFF) | 0.2 ms or less for 200 mA (at 24 V DC) |
| Insulation of Circuit | Photocoupler Insulation |
| Output Operation Indication | LED on panel (when photocoupler is driven) |
| Mass (Weight) | 0.3 kg |
| Dimensions (W x H x D) | 40 mm x 90 mm x 87 mm |
| Applicable PLC | FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC |
| Conformity | CE, UL/cUL, UKCA Compliant |
| Ambient Temperature | 0 to 55¡ãC (Operating), -25 to 75¡ãC (Storage) |
