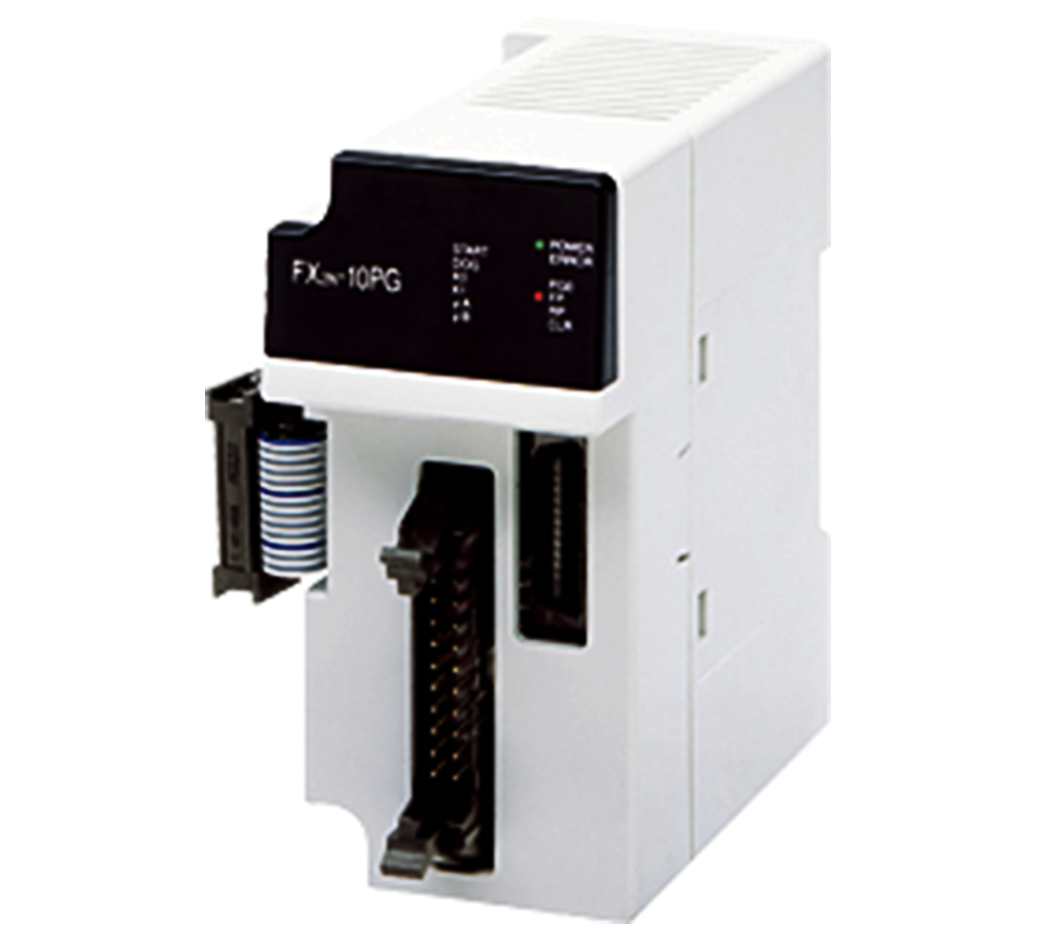

FX2N-10PG | Mitsubishi| Pulse output block
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed for demanding industrial environments, the Mitsubishi FX2N-10PG stands out as a high-performance pulse output block, expertly crafted for intricate positioning tasks. This unit integrates seamlessly with various MELSEC-F series PLCs, enabling robust and accurate control over single-axis stepper or servo motor systems. It offers flexible pulse output methods, coupled with advanced acceleration and deceleration profiles, which is vital for smooth and efficient machine operation. Furthermore, its ability to handle a vast positioning range ensures versatility across a wide array of high-value automation applications.
| Parameter | Specification |
|---|---|
| Product Type | Pulse Output Block / Positioning Unit |
| Manufacturer | Mitsubishi Electric |
| Series | MELSEC-F FX2N Series |
| Number of Control Axes | Independent single axis |
| Maximum Output Frequency | 1 MHz |
| Pulse Output Method | Differential line driver system |
| Pulse Output Form | Pulse train + direction, or Forward/Reverse rotation pulse train |
| Compatible PLCs | FX2N, FX3U, FX2NC, FX3UC Series |
| Power Supply Voltage | DC 5V 120mA (Internal from PLC) |
| Occupied I/O Points | 8 points (sequencer input/output) |
| Positioning Range | -2,147,483,648 to +2,147,483,647 pulses (scalable in ¦Ìm, 10-4 inch, mdeg) |
| Acceleration/Deceleration | Automatic trapezoidal, approximate S-shaped |
| Control Inputs | 3 points (START, DOG, PG0) |
| Interrupt Inputs | 2 points (X0, X1) |
| Output Points | 3 points (FP, RP, CLR) |
| Mass | 0.2 Kg |
| Operating Temperature | 0 to 55 ¡ãC |
| Operating Humidity | 5 to 95% RH (non-condensing) |
