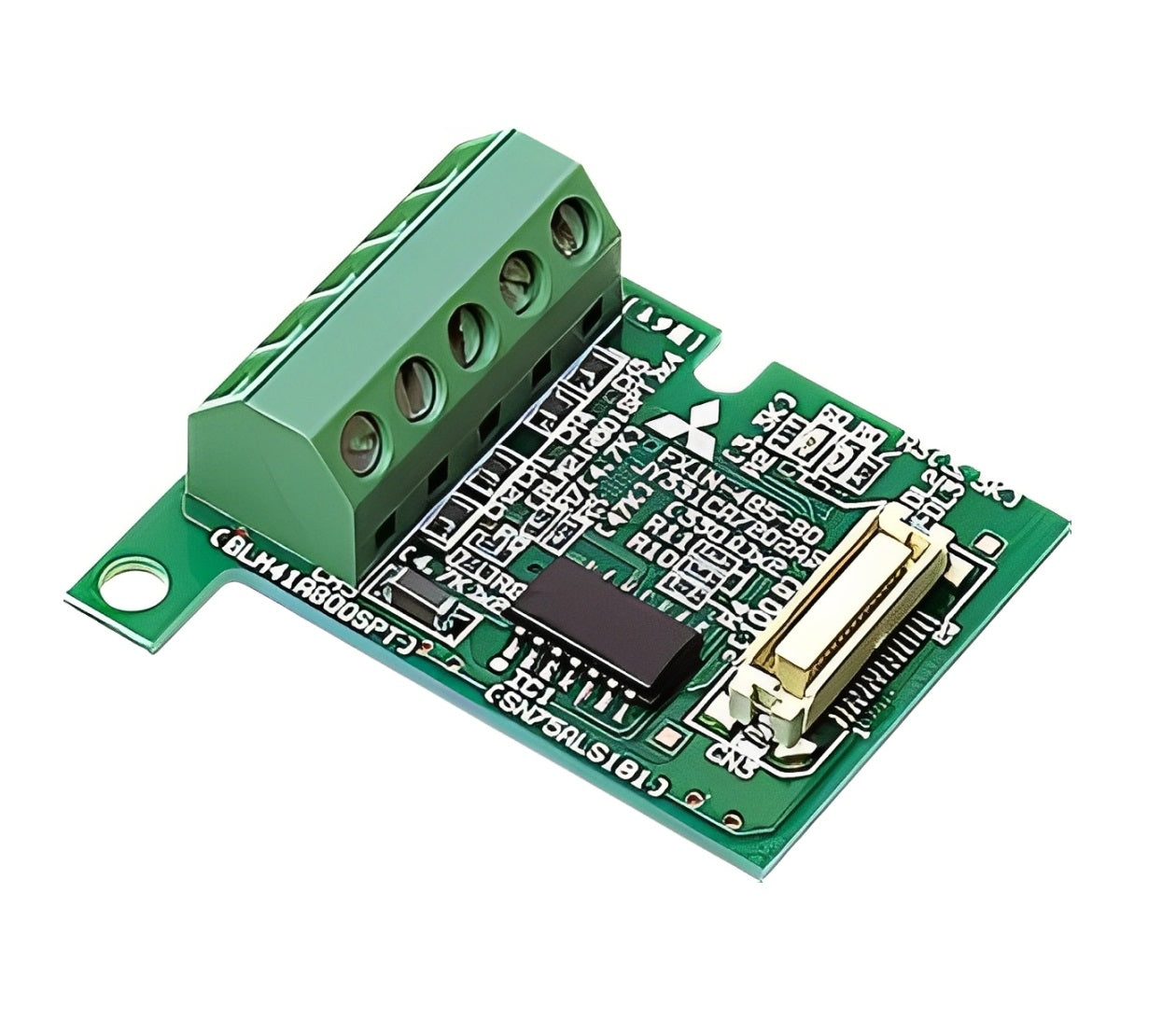

FX1N-485-BD | Mitsubishi| RS-485 Communication Expansion Board
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX1N-485-BD communication expansion board stands out as a critical component for integrating FX1N and FX1S series PLCs within industrial environments. This versatile module, engineered for reliable RS-485 and RS-422 serial communication, significantly enhances connectivity options. It expertly supports a wide array of communication methods, ranging from straightforward non-protocol data transfers to sophisticated N:N network configurations and dedicated computer links, thus proving invaluable for seamlessly connecting various industrial devices over moderate distances. Furthermore, its half-duplex, bi-directional capability ensures efficient data flow, making it an indispensable tool for advanced automation systems.
| Parameter | Specification |
|---|---|
| Product Type | RS-485 Communication Board (Non-isolated) |
| Applicable PLC Series | FX1S, FX1N Series PLCs |
| Communication Standard | Conforms to RS-485 / RS-422 |
| Communication Method | Half-duplex, Bi-directional communication |
| Supported Protocols | No Protocol, Computer Link (Dedicated Protocol 1, 4), Parallel Link, N:N Network |
| Max. Baud Rate (Non-Protocol/Computer Link) | 19200 bps |
| Max. Baud Rate (N:N Network) | 38400 bps |
| Maximum Transmission Distance | 50 m (164 ft) |
| Isolation | Not insulated (Non-isolated between communication line and PLC main unit) |
| Power Supply | 5V DC (Internal power from PLC main unit) |
| Current Consumption | 60 mA |
| Occupied I/O Points | 0 points |
| Connection Method | European Terminal Block |
| Dimensions (W x H x D) | 43 x 38.5 x 22 mm |
| Weight | 0.02 kg |
| LED Indicators | RD (Receive Data), SD (Send Data) |
