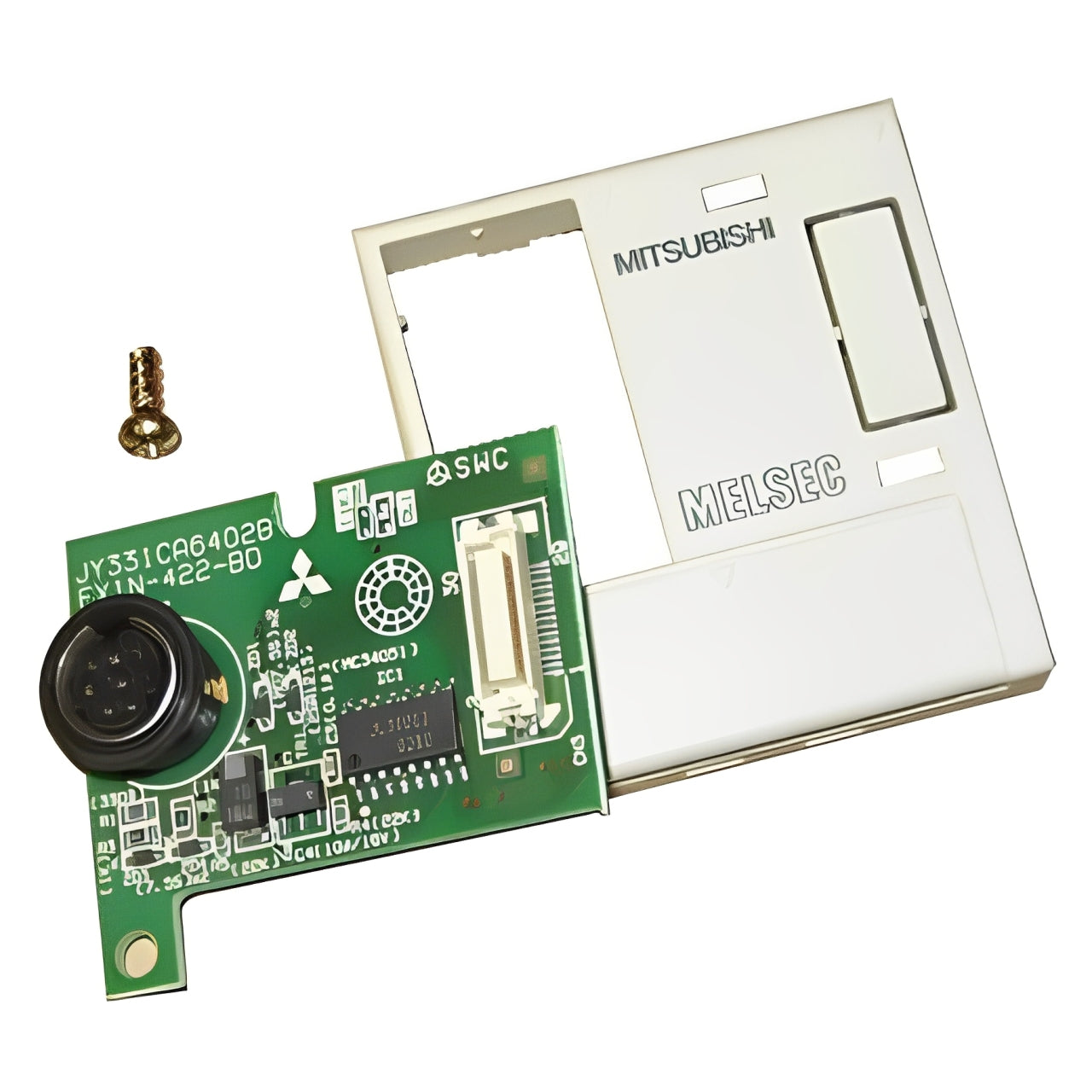

FX1N-422-BD | Mitsubishi| RS-422 Communication Expansion Board
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi FX1N-422-BD is an indispensable RS-422 communication board designed specifically for the FX1S/FX1N series PLCs. This robust module facilitates seamless, high-speed data transfer between your PLC and various programming tools or external devices, further enhancing your industrial automation capabilities. With its reliable half-duplex, bi-directional communication, it ensures efficient connectivity even over substantial distances, making it ideal for a wide array of demanding applications.
| Parameter | Specification |
|---|---|
| Communication Standard | RS-422 |
| Communication Protocols | Programming Tool Protocol, ASCII, RTU |
| Data Transfer Rate | Up to 1 Mbps (General RS-422); 9600-115200 bps (Programming Communication) |
| Max. Transmission Distance | 50m (Programming Tool); up to 1200m (RS-422 Standard) |
| Power Supply | 5V DC (supplied from PLC) |
| Current Consumption | 60 mA |
| Communication Method | Half-duplex, Bi-directional |
| External Connector | Mini-DIN 8-pin socket |
| Insulation | Non-isolated |
| Dimensions (WxHxD) | 43 x 90 x 87 mm |
| Weight | 0.2 kg |
| Operating Temperature | -20¡ãC to +60¡ãC |
| Operating Humidity | 5% to 95% RH (non-condensing) |
