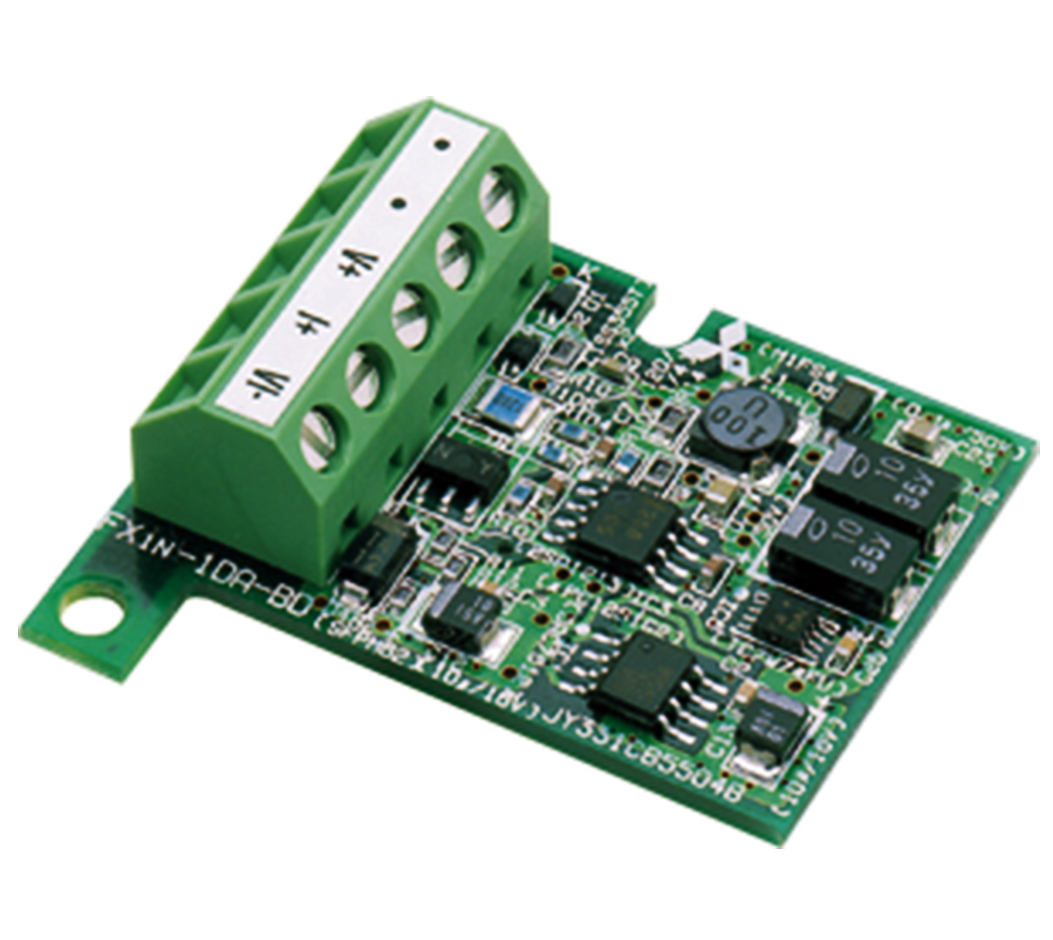

FX1N-1DA-BD | Mitsubishi| Analog output board
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Boost your Mitsubishi FX1S or FX1N PLC's analog output with the FX1N-1DA-BD expansion board. This versatile module provides a single 12-bit analog output, configurable for both 0-10V and 4-20mA signals, ensuring precise control for varied industrial applications.
| Parameter | Specification |
|---|---|
| Model | FX1N-1DA-BD |
| Manufacturer | Mitsubishi Electric |
| Module Type | Analog Output Expansion Board |
| Compatible PLCs | MELSEC FX1S (V2.0+), FX1N (V2.0+) Series |
| Number of Analog Outputs | 1 Channel |
| Voltage Output Range | DC 0 V to 10 V (External load resistance 2 k¦¸ to 1 M¦¸) |
| Current Output Range | DC 4 mA to 20 mA (External load resistance 500 ¦¸ or less) |
| Voltage Output Resolution | 12-bit binary (2.5 mV) |
| Current Output Resolution | 11-bit binary (8 ¦ÌA) |
| Overall Accuracy (Voltage) | ¡À1% (¡À0.1 V) of full scale 10V |
| Overall Accuracy (Current) | ¡À1% (¡À0.16 mA) of full scale 16 mA |
| D/A Conversion Time | Approx. 10 ms |
| Power Supply | Internal (from base unit/sequencer) |
| Occupied I/O Points | 0 points |
| Operating Ambient Temperature | 0 to 55 ¡ãC |
| Weight | 0.02 kg |
| Dimensions (W x H) | 43 x 38.5 mm |
