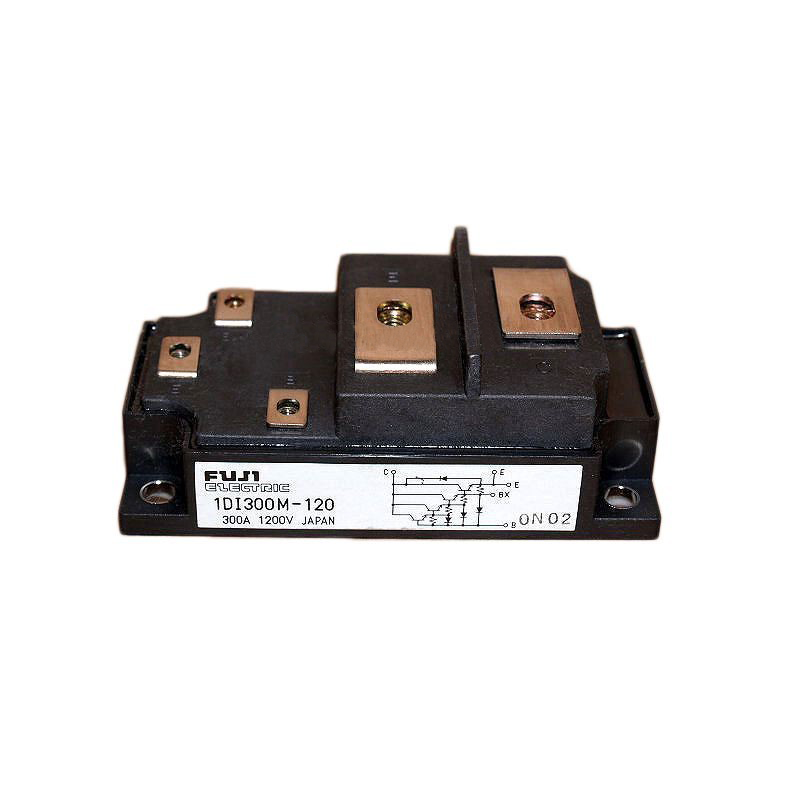

Fuji Electric-IGBT 1DI300M-120
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
This Fuji Electric 1DI300M-120 IGBT module represents a crucial component for demanding industrial applications, ensuring robust and efficient power management. It¡¯s meticulously designed to deliver superior performance in systems like motor drives, uninterruptible power supplies (UPS), and advanced welding machinery, maintaining consistent reliability even under the most rigorous electrical conditions. Furthermore, its integrated free-wheeling diode is essential for handling inductive loads, preventing damaging voltage spikes and thereby enhancing overall circuit efficiency.
Key Technical Specifications
| Parameter | Symbol | Rating |
|---|---|---|
| Collector-Base Voltage | VCBO | 1200 V |
| Collector-Emitter Voltage | VCEO | 1200 V |
| Emitter-Base Voltage | VEBO | 10 V |
| Collector Current (DC) | IC | 300 A |
| Collector Current (1ms) | ICP | 600 A |
| Collector Power Dissipation (1 element) | PC | 2000 W |
| Junction Temperature | Tj | +150 ¡ãC |
| Storage Temperature | Tstg | -40 to +125 ¡ãC |
| Mass | Weight | 470 g |
| Isolation Voltage (AC. 1 min) | Viso | 2500 VAC |
| Collector-Emitter Saturation Voltage (Max) | VCE(sat) | 4.0 V |
| DC Current Gain (Min) | hFE | 1500 |
| Short Circuit Withstand Voltage (Min) | Ed | 750 ¦ÌV |
| Switching Time (Turn-Off Delay) (Max) | td(off) | 7.0 ¦Ìs |
