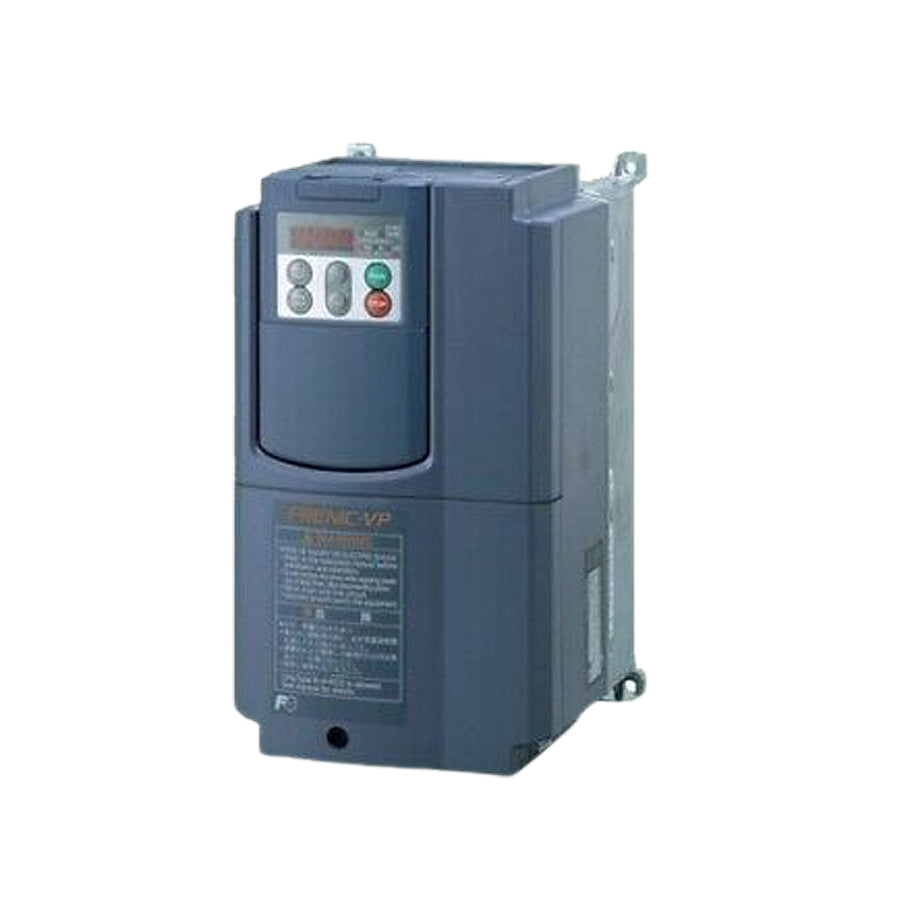

FRN0044F2S-4C | Fuji Electric | FRENIC Series Inverter
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Designed for demanding industrial environments, the Fuji Electric FRN0044F2S-4C is a robust variable frequency drive from the esteemed FRENIC-Ace series. This drive provides precision motor control and impressive flexibility, making it an ideal solution for a wide array of applications, including sophisticated machinery, pumps, and fans. Its multi-rated specifications and advanced features ensure optimal performance and energy efficiency, setting a high standard in industrial automation.
| Parameter | Specification |
|---|---|
| Nominal Motor Power (ND/HD/HHD) | 30 HP [22 kW] (ND) / 25 HP [18.5 kW] (HD & HND) |
| Rated Output Current (HD) | 44 Amps |
| Rated Output Voltage | 3 Phase, 380-480 Volt (with AVR) |
| Main Power Supply Input | 3 Phase, 380 to 480 Volt, 50/60 Hz |
| Rated Output Capacity (ND/HD/HHD) | 34 kVA (ND) / 29 kVA (HD & HND) / 23 kVA (HHD) |
| Overload Capability | 120% for 1 min (ND & HND); 150% for 1 min (HD); 150% for 1 min or 200% for 0.5s (HHD) |
| Enclosure Rating | IP20, UL Open Type |
| Cooling Method | Fan Cooling |
| Control Methods | V/F Control (IM), Dynamic Torque Vector Control (IM), Sensorless Vector Control (PMSM) |
| Analog Inputs | (1) 0 to +10Vdc, (1) 4 to 20mA |
| Digital Outputs | (1) Form C Relay, (2) Transistor Outputs |
| Communication Ports | (2) RS-485 Connections (RJ45 Port, Terminal) |
| Safety Function | Safe Torque Off (STO) Input (EN/ISO13849-1, SIL3, PLe, cat. 3 compliant) |
| Dimensions (H x W x D) | 8.66" x 10.63" x 7.48" |
| Weight | 20 lbs |
| Warranty | 3 Years |
Shipping
At itrustbot, we prioritize fast, reliable shipping to minimize your industrial automation downtime, with warehouse operations Monday-Friday (closed on national holidays). Most orders ship within 2–3 business days; some specific items have a 3–5 day lead time, and we’ll notify you promptly of any unexpected delays.
Free Standard Shipping is available for all non-rush/next-day orders (no minimum purchase). For expedited shipping, we use DHL, FedEx, and UPS for items under 150kg; sea freight or economical options are available for heavy/bulky equipment (contact us to arrange). A $100 flat fee + expedited carrier costs applies for rush orders, with same-day dispatch for orders placed before 3:00 PM EST.
Estimated delivery times (after dispatch): USA & Canada/UK & EU (3–7 business days); Australia & New Zealand (4–8 business days); Rest of the World (7–12 business days). Times are estimates only—carrier/customs delays may occur.
Return
Return Windows: Notify us within 30 days of delivery for wrong/defective items (our error); within 14 days for incorrect orders/unwanted items (customer error).
Return Conditions: Items must be unused, in original received condition, and in unopened original packaging. Opened factory boxes are non-returnable unless the item is defective (sealed boxes opened cannot be resold as new).
