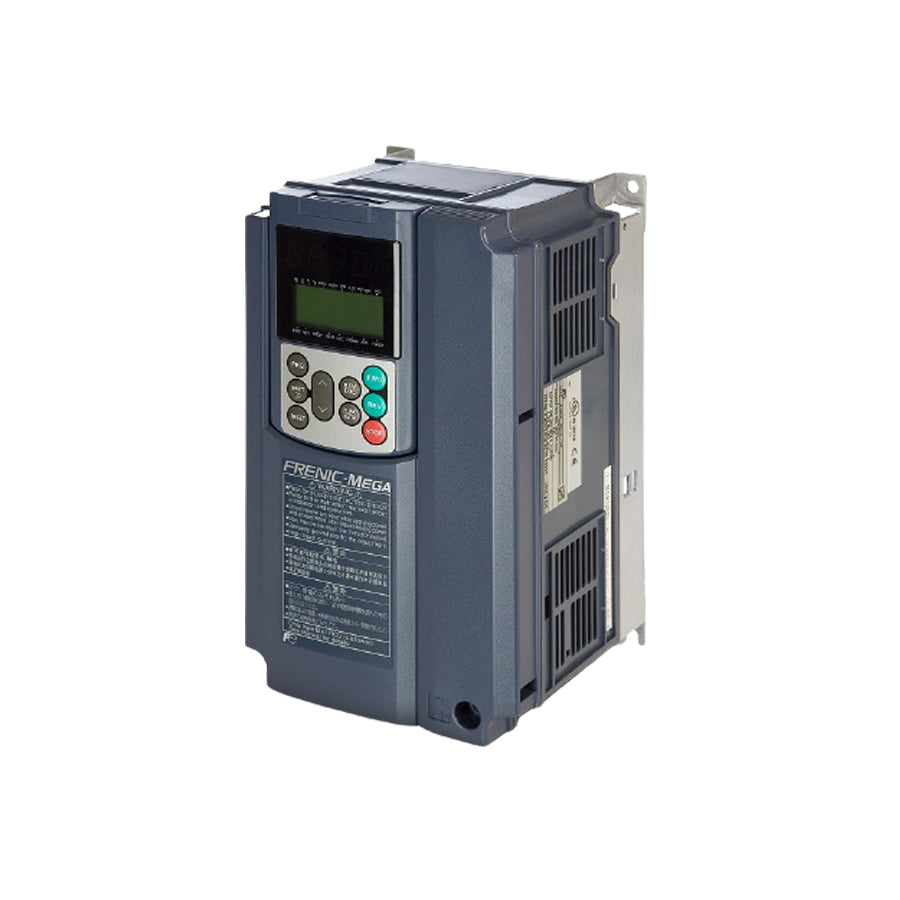

FRN0022E2S-4C | Fuji Electric | FRENIC Series Inverter
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for exceptional performance and versatility, the Fuji Electric FRENIC-Ace FRN0022E2S-4C is a 10 HP variable frequency drive that boasts advanced motor control, extensive customizable logic capabilities, and flexible communication interfaces. This drive excels across diverse industrial applications, efficiently managing everything from fans and pumps to highly specialized machinery, while ensuring reliable and precise operation.
| Parameter | Specification |
|---|---|
| Product Series | FRENIC-Ace (E2) |
| Power Rating | 10 HP (HD/HND Rating) |
| Input Voltage | 3-Phase, 380-480V AC (+10%/-15%), 50/60 Hz |
| Output Voltage | 0-480V, 3-Phase |
| Rated Output Current | 17.5 Amps (HD/HND Rating) |
| Output Frequency Range | 0-500 Hz |
| Control Methods | V/F Control, Dynamic Torque Vector Control, Sensorless Vector Control (PMSM) |
| Digital Inputs | 5-7 Programmable |
| Analog Inputs | 2 (1x 0-10Vdc, 1x 4-20mA) |
| Digital Outputs | 3 (1x Form C Relay, 2x Transistor) |
| Analog Outputs | 2 (Selectable 0-10Vdc or 4-20mA) |
| Communication Interface | RS485 (Modbus RTU), CANopen (Built-in standard) |
| Enclosure Rating | IP20, UL Open Type (NEMA 1/UL Type 1 kit optional) |
| Safety Function | Safe Torque Off (STO), SIL3, PLe, Cat. 3 |
| Dimensions (H x W x D) | 9.05 x 7.09 x 6.22 inches (230 x 180 x 158 mm) |
| Weight | 11 lbs (5.0 kg) |
