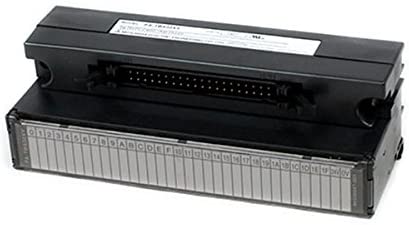

The Mitsubishi FA-TBS32XY serves as a crucial junction terminal block, efficiently converting 32-point MELSEC connector-type I/O modules into a 32-point screw terminal interface. Engineered to simplify wiring processes and ensure dependable signal transmission between programmable controllers and various field devices, this module significantly enhances system setup and maintenance efficiency.
| Parameter | Specification |
|---|---|
| Model | FA-TBS32XY |
| I/O Points | 32 points (X0 to X1F or Y0 to Y1F) |
| Rated Voltage | 24VDC (CLASS 2) |
| Max. Operating Voltage | 28.8VDC (CLASS 2) |
| Max. Operating Current | 1A (each signal terminal), 2A (each power supply terminal) |
| Terminal Type | Screw terminal type, M3 screws, 34P, 7mm pitch |
| Applicable Wire Size | 0.3 to 1.25mm2 (22 to 16 AWG) with solderless terminals |
| Installation Method | DIN rail (IEC 60715 compliant) or screw mounting |
| Withstand Voltage | 500VAC for 1 minute |
| Insulation Resistance | 10M¦¸ or more (at 500VDC) |
| Weight | Approx. 150g |
| Operating Temperature | 0 to 55¡ãC |
| Operating Humidity | 5 to 95%RH, non-condensing |
| Supported PLC Series | MELSEC iQ-R, iQ-F, Q, F, L Series |
| Certifications/Standards | CE, UL, cUL |
