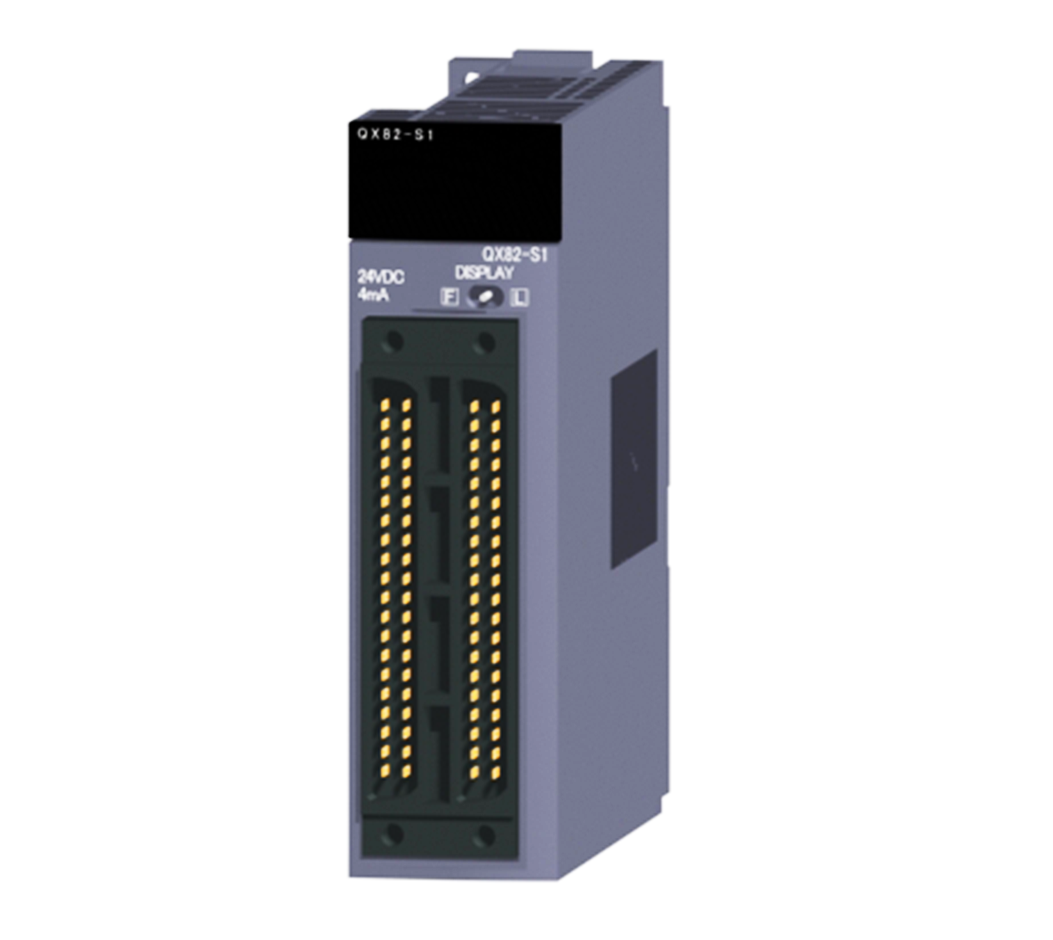

DC input unit (minus common type) QX82 - S1
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
Engineered for seamless integration within advanced MELSEC-Q systems, the Mitsubishi QX82-S1 stands as a high-performance 64-point DC input module. It boasts exceptional adaptability with configurable input response times, ensuring precise data acquisition across diverse industrial environments. Furthermore, its opto-isolated inputs provide critical protection against electrical noise, ultimately guaranteeing signal integrity and system stability in demanding operational settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Line | MELSEC-Q Series |
| Product Type | DC Input Module (Negative Common) |
| Number of Inputs | 64 points |
| Rated Input Voltage | 24 V DC (+20/-15%, ripple ratio within 5%) |
| Rated Input Current | Approx. 4 mA |
| Input Response Time | Configurable (0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms settings) |
| Insulation Method | Opto-isolator (Photocoupler) |
| Dielectric Strength | 560 V AC rms / 3 cycles (altitude 2,000 m) |
| Insulation Resistance | 10 M¦¸ or higher |
| Protection Grade | IP2X |
| External Wiring Connection | 40-pin connector x 2 |
| Internal Current Consumption (5 V DC) | 90 mA (TYP. all points ON) |
| Dimensions (H x W x D) | 98 mm x 27.4 mm x 90 mm |
| Weight | 0.18 kg |
