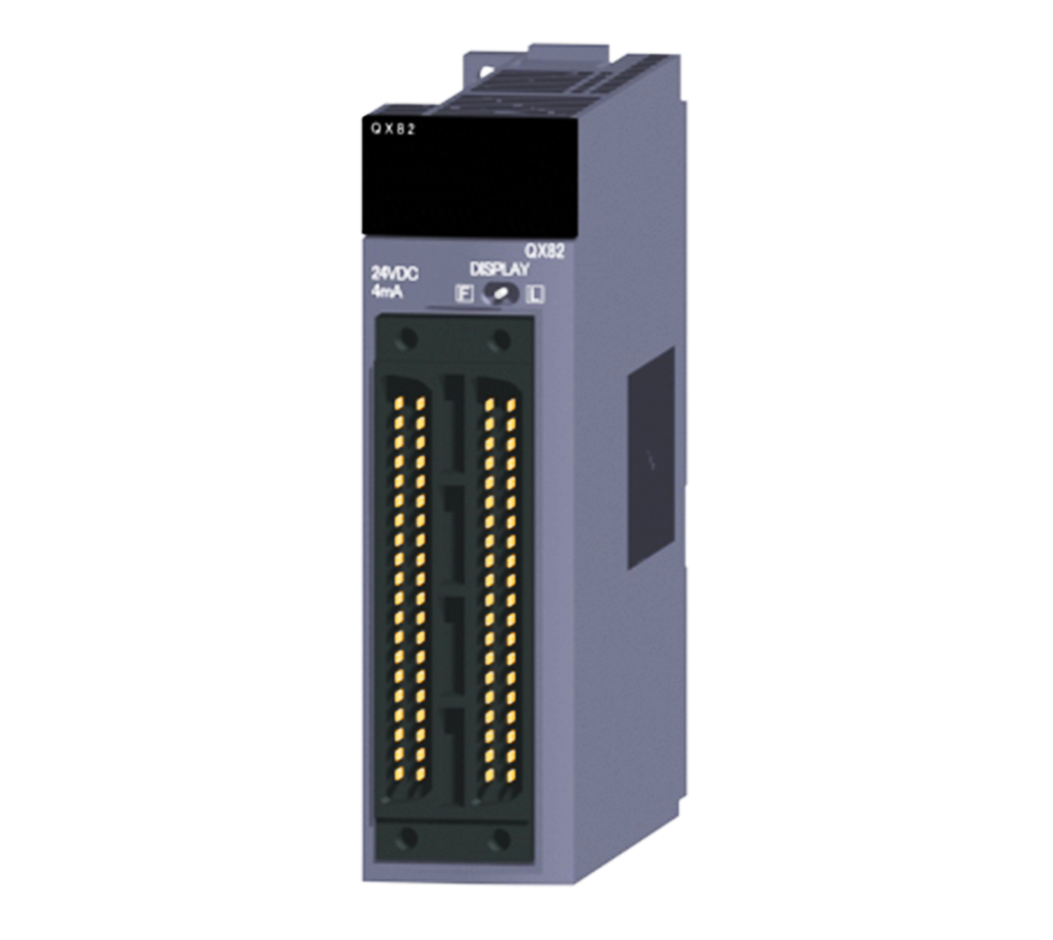

DC input unit (minus common type) QX82
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi QX82 stands as a pivotal DC Input Module within the MELSEC-Q series, engineered to deliver unparalleled precision and reliability in critical industrial automation environments. This robust module boasts 64 distinct input points, a generous count, indeed, which facilitates extensive sensor integration. Furthermore, its crucial photocoupler isolation method ensures signal integrity, effectively safeguarding against electrical noise and ground loop issues. Operating reliably on a 24VDC input, this unit is truly an indispensable component for control engineers and purchasing managers seeking to optimize their automation systems with dependable signal acquisition and superior operational stability.
| Parameter | Specification |
|---|---|
| Number of Input Points | 64 points |
| Type | DC Input (Negative Common) |
| Isolation Method | Photocoupler |
| Rated Input Voltage | 24VDC (+20% / -15% tolerance) |
| Rated Input Current | Approx. 4mA |
| ON Voltage Threshold | 19V or higher |
| OFF Voltage Threshold | 11V or lower |
| ON Current Threshold | 3mA or higher |
| OFF Current Threshold | 1.7mA or lower |
| Response Time | 1/5/10/20/70 ms (selectable) |
| External Connections | 40-pin connector x 2 |
| Internal Current Consumption | 90mA (at 5VDC) |
| Weight | 0.14 kg |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 90 mm |
| Conformance Standards | UL, cUL, CE(EMC), CE(RoHS), KC(EMC), NK, DNV, ABS, BV, UKCA |
