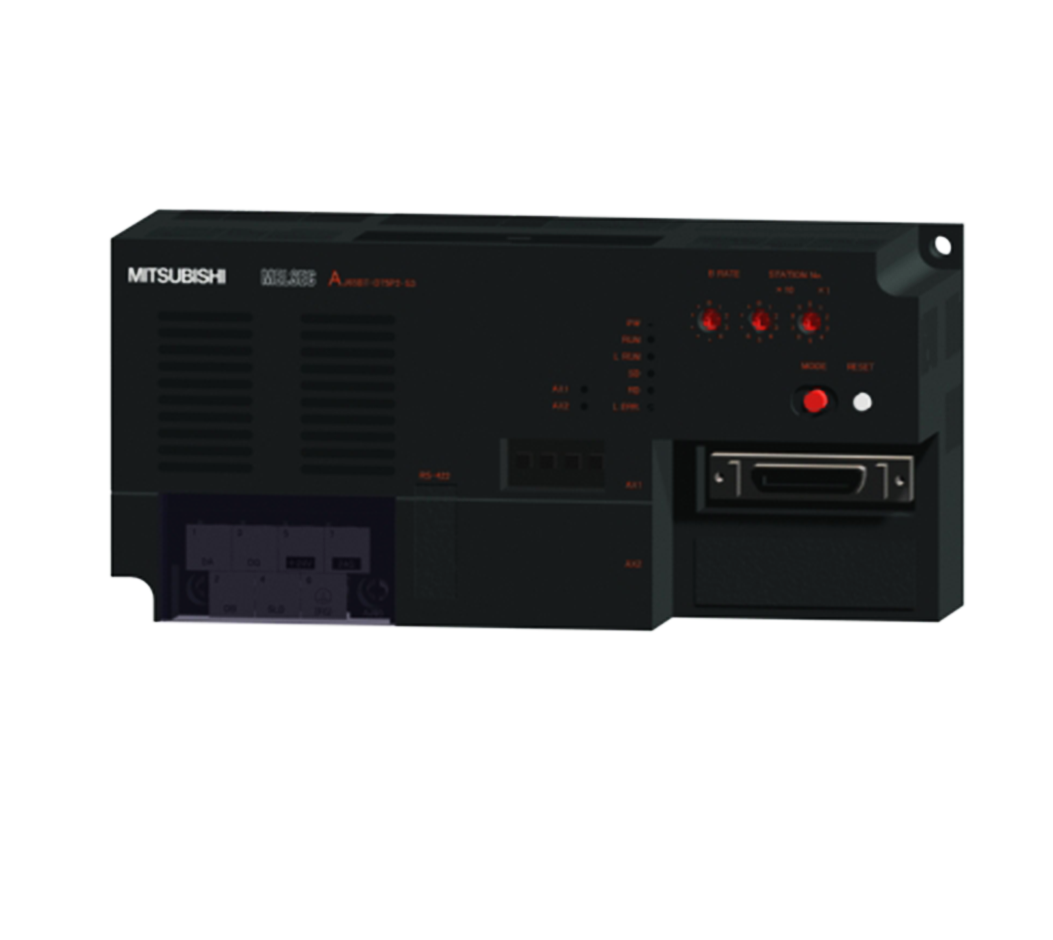

CC-Link Positioning Unit (Open Collector Output Type) AJ65BT-D75P2-S3
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi AJ65BT-D75P2-S3 stands as a remarkably capable 2-axis positioning module, expertly engineered for seamless integration within MELSEC-A series systems. This sophisticated unit readily supports both linear and circular interpolation, consequently enabling highly precise Point-to-Point (PTP) and complex path control in a multitude of demanding industrial applications. Furthermore, its crucial CC-Link communication capability ensures robust, high-speed data exchange, making it an indispensable component for optimizing automation workflows.
| Parameter | Specification |
|---|---|
| No. of Control Axes | 2 axes |
| Interpolation Function | 2-axis linear, 2-axis circular interpolation |
| Control Method | PTP control, Path control, Speed control, Speed-position switching control |
| Control Unit | mm, inch, degree, pulse |
| Positioning Data | 600 data/axis |
| Data Backup | Flash ROM (battery-less) |
| Maximum Output Pulse | 400 kpps |
| Station Type | Intelligent device station |
| Number of Occupied Stations | 4 stations |
| Operating Ambient Temperature | 0 to 55 ¡ãC |
| Storage Ambient Temperature | -20 to 75 ¡ãC |
| Operating Ambient Humidity | 10 to 90 %RH, non-condensing |
| Vibration Resistance | Compliant with JIS B 3502 and IEC 61131-2 |
| Shock Resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s2 for 3 times in 3 directions) |
| Operating Atmosphere | No corrosive gases |
| Installation Location | Inside a control panel |
