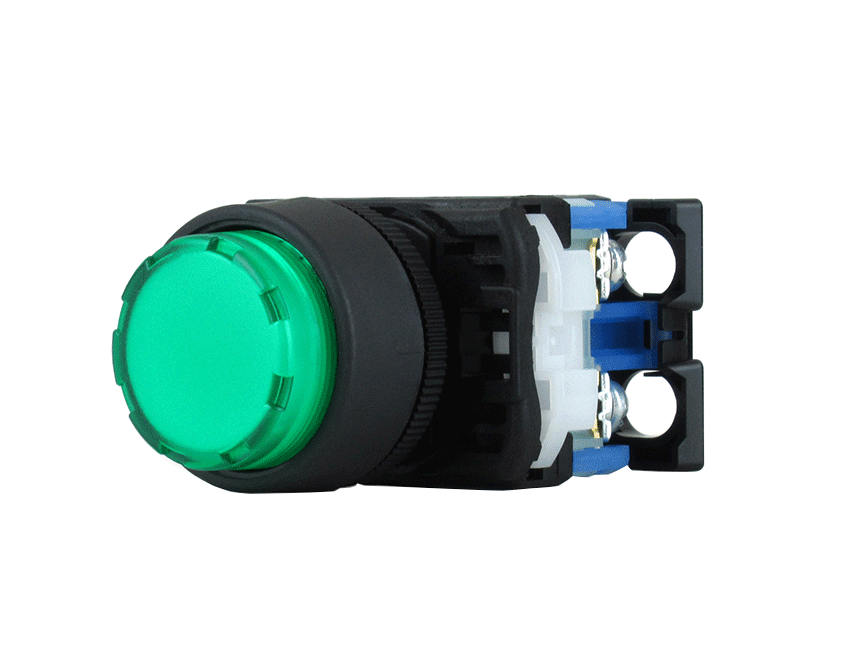

AR22EOL-10Q4G| Fuji Electric | 22mm-dia. Illuminated Pushbutton
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Fuji Electric AR22EOL-10Q4G stands as a remarkably robust 22mm illuminated pushbutton switch, specifically engineered for precise, reliable control within diverse industrial automation landscapes. Its innovative tool-less mounting mechanism and thoughtfully designed, streamlined wiring dramatically simplify installation, moreover guaranteeing consistent performance with a single Normally Open (1NO) contact, making it truly ideal for critical machinery interfaces.
| Parameter | Specification |
|---|---|
| Series | AR22 Series |
| Product Type | Illuminated Pushbutton Switch, Flush/Extended |
| Contact Configuration | 1 Normally Open (1NO) |
| Mounting Hole Diameter | ?22.3mm / ?25.5mm |
| Mounting Method | Tool-less, Snap-on Contact Block |
| Panel Thickness Adjustment | Not Required |
| Illumination Type | LED |
| Illumination Color | Green (typically, based on 'G' suffix in model number) |
| Rated Lamp Voltage | 24V AC/DC |
| Rated Lamp Current | 7.5mA AC/DC |
| Wiring Connection | Two-directional Wiring Possible |
| Terminal Screw Size | M3.5 |
| Operator Module Protection | IP65 (Dust-tight, protected against water jets for operator module) |
| Approx. Depth (1NO+1NC switches) | 41mm (for pushbuttons and selector switches) |
