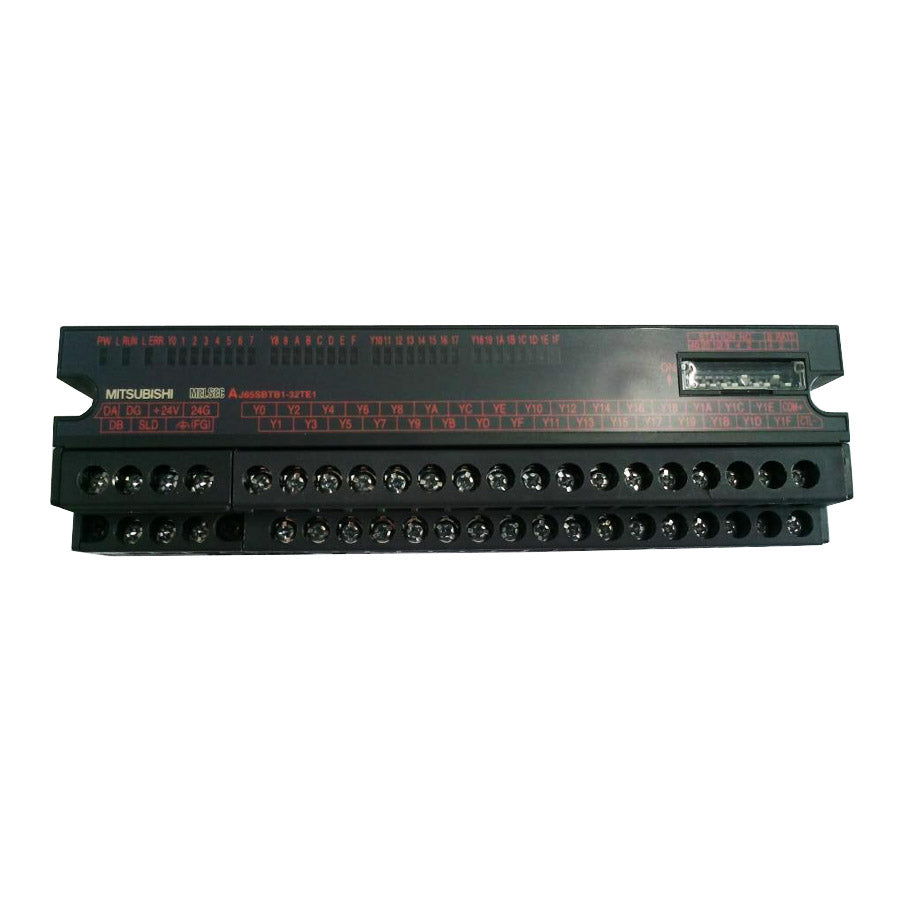

AJ65SBTB1-32TE1 | Mitsubishi| Transistor Output Module
Condition: New Original Packaging
Ellglble For 1-3 Business days Shipping
100,000+ genuine producls in stack. More about shipping→
All Parts Come with 12-Month Warranty
Industy-leading protection. More about warranty→
New, Refurbished & Pre-owned Items Available
Multiple opions to meet your needs and budget
The Mitsubishi AJ65SBTB1-32TE1 represents a pivotal component in modern industrial automation, serving as a highly efficient CC-Link remote output unit. This module, part of the robust MELSEC-A series, is meticulously designed for cabinet installation, providing 32 digital output points that operate on a 24VDC source logic. Its inherent CC-Link communication capability ensures smooth, high-speed data exchange across field networks, moreover, the screw-clamp terminals simplify wiring, ultimately enhancing system reliability and reducing installation time. This unit is an indispensable asset for control engineers and purchasing managers seeking to optimize distributed I/O architectures within complex industrial environments.
| Parameter | Specification |
|---|---|
| Series | CC-Link, MELSEC-A series |
| Type | Remote Transistor Output Unit |
| Number of Output Points | 32 points |
| Output Type | Transistor (Source) |
| Rated Load Voltage | 12/24VDC |
| Operating Load Voltage Range | 10.2 to 26.4VDC |
| Max. Load Current | 0.5A/point, 4.8A/common |
| Leakage Current at OFF | 0.1mA or lower |
| Output Answer Time | 1.5ms |
| Isolation Method | Photocoupler |
| Wiring | Screw Terminal Block |
| Power Supply Voltage | DC24V |
| Internal Current Consumption | 0.065A |
| Occupied Stations | 1 |
| Operating Ambient Temperature | 0 to 55¡ãC |
| Dimensions (W x H x D) | 179 mm x 50 mm x 40 mm |
| Weight | 0.26 kg |
| Compliance | CE, UL/cUL, UKCA Compliant |
